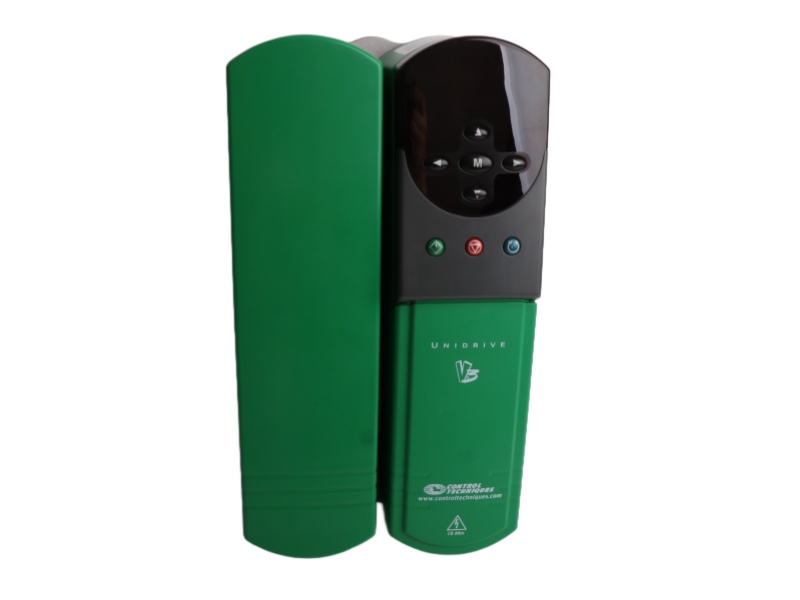

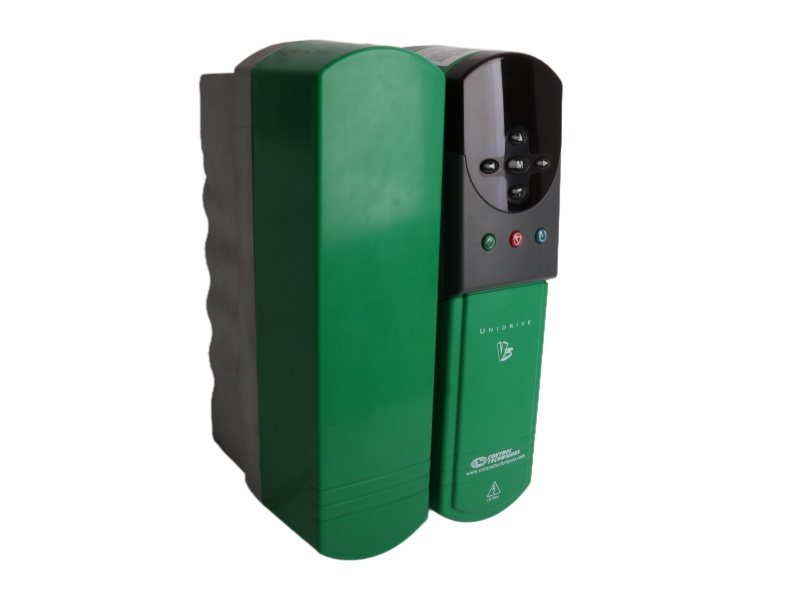

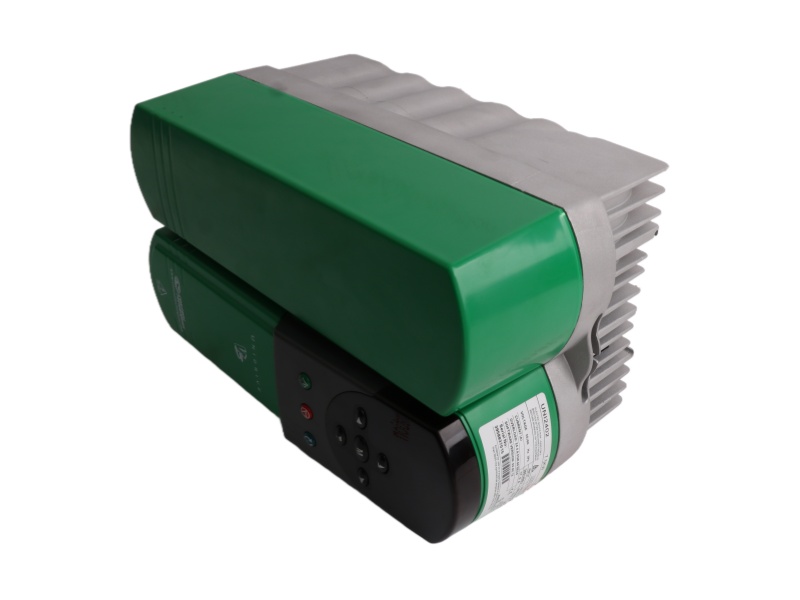

The Universal Variable Speed AC Drive UNI2402 Control Techniques is a powerful and versatile variable speed AC drive designed to deliver reliable performance across a wide range of industrial applications. Weighing 17 pounds (8 kg), Control Techniques UNI2402 Universal Variable Speed AC Drive is built with robust engineering and integrates multiple operating modes, including Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, and Regenerative functions. This flexibility makes the drive highly adaptable to specific operational needs, whether for precision control, energy savings, or advanced automation tasks.

Engineered for demanding environments, the UNI2402 AC Drive Control Techniques operates within an ambient temperature range of 0 °C to 50 °C and can start up at temperatures as low as -10 °C. It is capable of handling storage conditions from -40 °C to 50 °C and withstands humidity levels up to 95% non-condensing, ensuring durability and consistent operation under challenging conditions.

The CONTROL TECHNIQUES UNI2402 is classified in the 400V voltage class, operating effectively within a 380 to 480 VAC input range with ±10% variability. It delivers a nominal power rating of 7.5 kW or 10 HP, supported by an output current of 16 A and a typical input current of 17 A. This balance of compact size and strong performance makes it suitable for both standard and heavy-duty applications.

Additional features further enhance the value of the DRIVE Control Techniques UNI2402, such as position control, digital lock, programmable logic, and two programmable thresholds. Functions like mains dip ride-through, frequency slaving, catch a spinning motor, and eight preset speeds with accelerations and decelerations provide advanced flexibility. Together, these capabilities make the drive a dependable and efficient solution for modern variable speed motor control.
