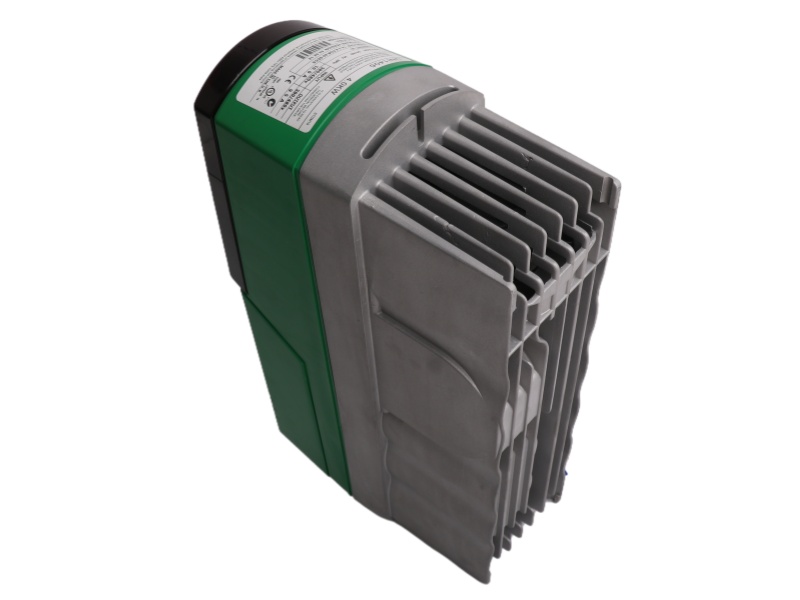

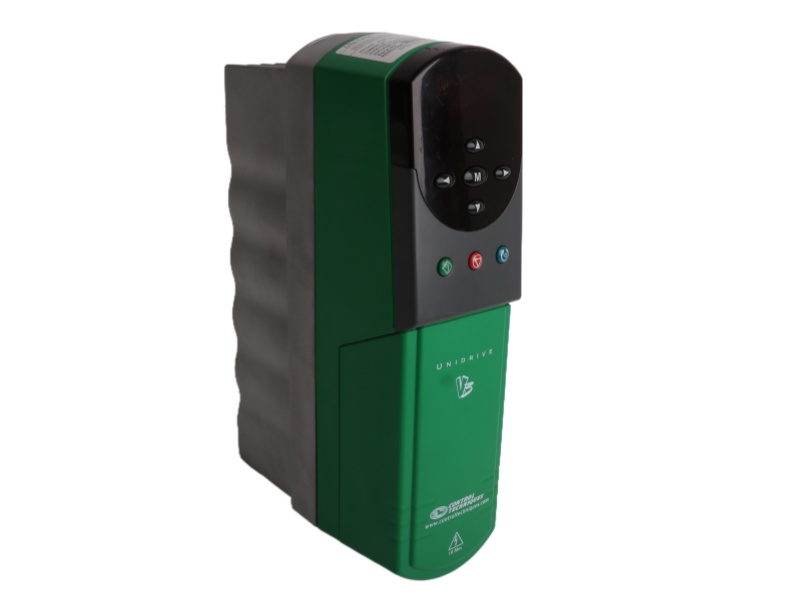

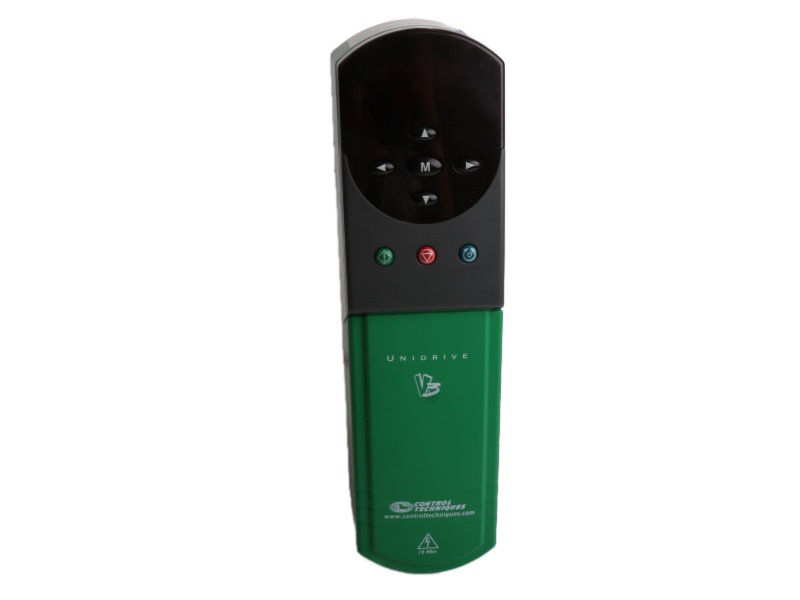

The AC Inverter Control Techniques UNI1405 is a universal variable speed AC drive designed to deliver reliable performance across a wide range of industrial applications. Operating within a voltage range of 380 to 480 VAC ±10%, it provides a nominal power rating of 4 kW or 5 HP with an output current of up to 9.5 A. Compact in design at just 4 kg, the unit combines efficiency with versatility, making it suitable for both standard and demanding motor control tasks.

Built for flexibility, the Control Techniques UNI1405 supports various modes such as Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, and Regen. These options allow it to adapt to specific operational needs while ensuring precise speed regulation and dependable torque performance. Its advanced control functions make it highly effective in dynamic environments.

The UNI1405 CONTROL TECHNIQUES UNI1403 AC drive is engineered to operate in ambient temperatures ranging from 0 to 50 °C, with start-up capability down to -10 °C. It also withstands storage temperatures from -40 to 50 °C and tolerates up to 95% relative humidity without condensation, ensuring resilience in harsh conditions and continuous system reliability.

Additional features of the UNI1405  high-performance motor control solution include position control, digital lock, programmable logic, and multiple preset speeds. Functions such as mains dip ride-through, frequency slaving, catch a spinning motor, and both injection and dynamic braking enhance operational stability, making this Control Techniques UNI1405 PDF a dependable and efficient solution for industrial motion control.
