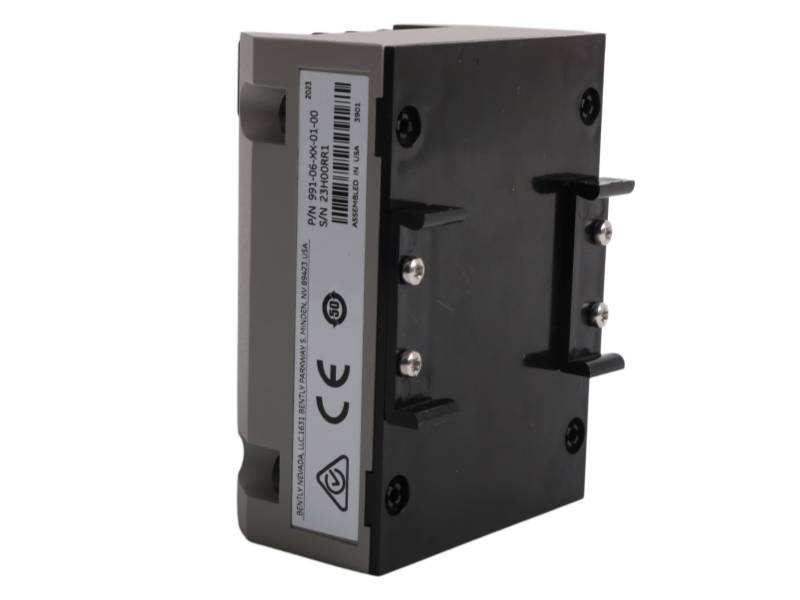

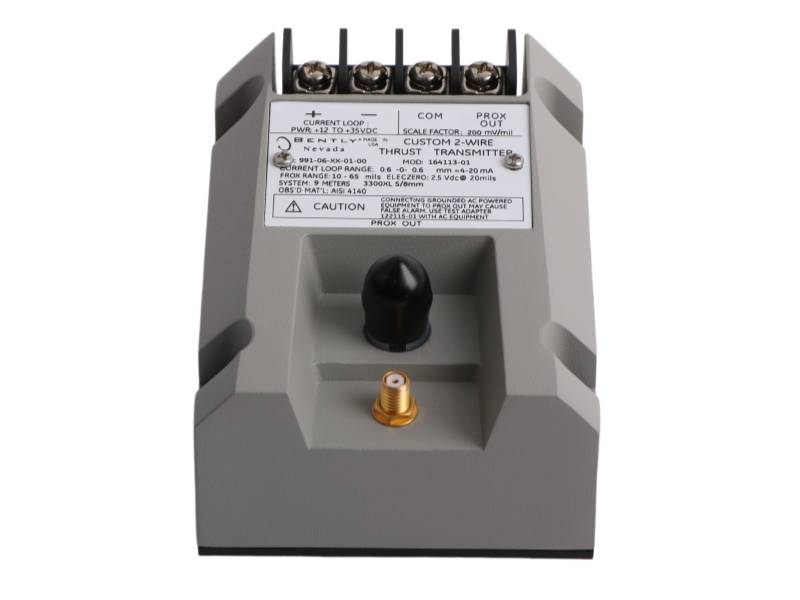

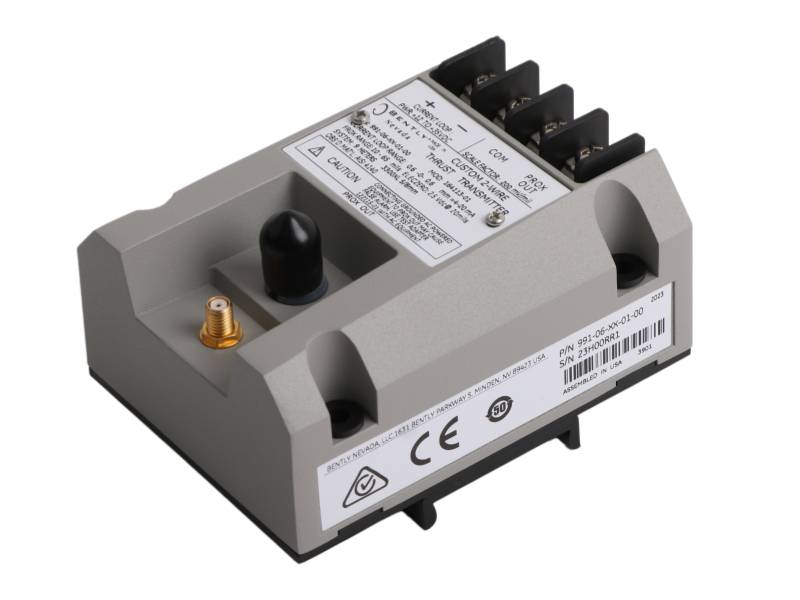

The Thrust Position Transmitter Bently Nevada 991-06-XX-01-05 MOD:164113-01 is a 2-wire loop-powered device converting axial displacement to 4-20 mA signals, featuring integrated Proximitor, diagnostic output, and CSA/ATEX approvals for compressor monitoring.

High-Resolution Measurement

• Axial Displacement Range: 0.6-0-0.6 mm measurement range for precise thrust position monitoring.

• 4-20 mA Output: Industry-standard proportional signal for seamless integration with control systems.

• Diagnostic Capability: Non-isolated PROX OUT and coaxial connector provide dynamic vibration and gap voltage signals.

• Loop Adjustment: Non-interacting zero and span potentiometers under the label for accurate calibration.

• Test Input Pin: Enables quick verification of loop signal output using variable DC voltage source.

• Signal Integrity: Power-up inhibit and Not OK/Signal Defeat circuits prevent errors from transients or faulty probes.

FAQ

Q1: What is the Bently Nevada 991 Thrust Transmitter?

A1: It is a 2-wire loop-powered device that converts axial displacement to a 4-20 mA signal for machinery control systems.

Q2: What type of probe is compatible with this transmitter?

A2: It accepts input from the 3300 NSv proximity probe with matching extension cables in 5 m or 7 m system lengths.

Q3: What diagnostic features does the 991 transmitter include?

A3: It includes PROX OUT terminals and a coaxial connector for dynamic vibration and gap voltage signal output.

Q4: What environmental protection does this transmitter offer?

A4: It features potted construction for high humidity environments up to 100% condensing.

Q5: What mounting options are available?

A5: It offers a choice of 35 mm DIN-rail clips or bulkhead mounting screws for flexible installation.
