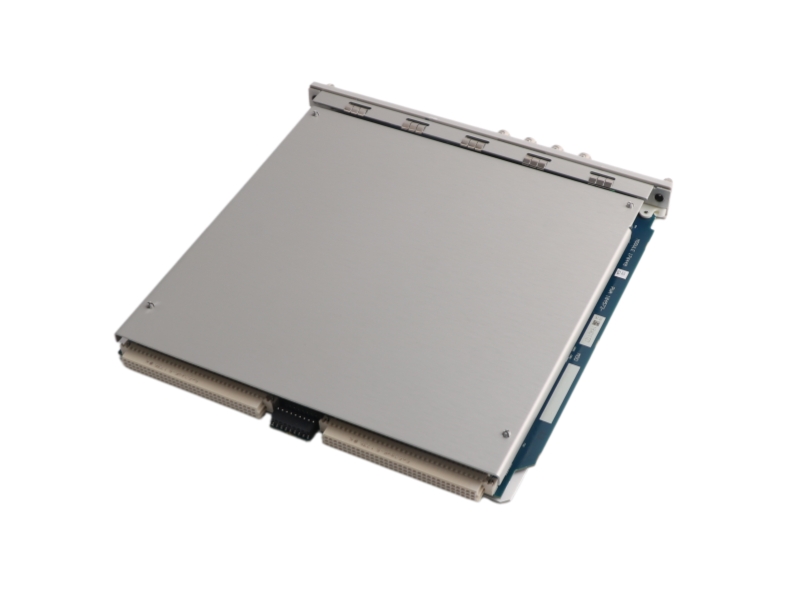

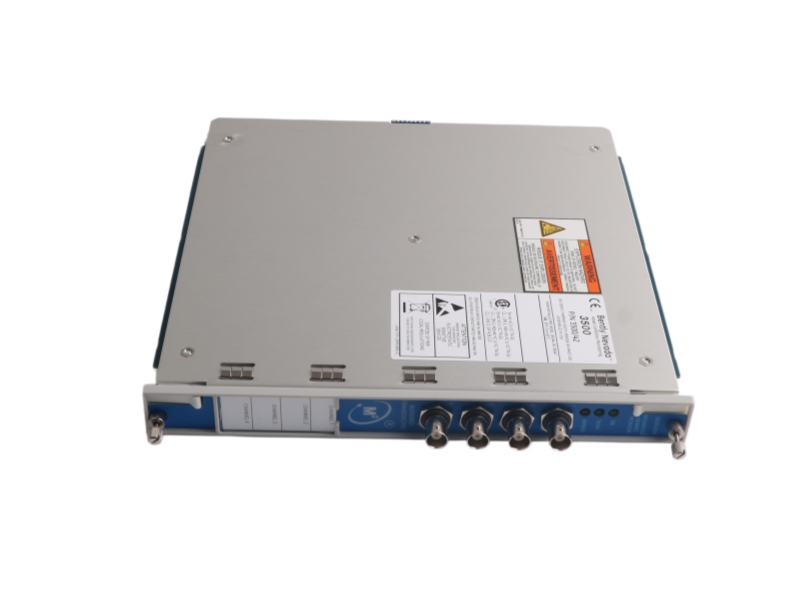

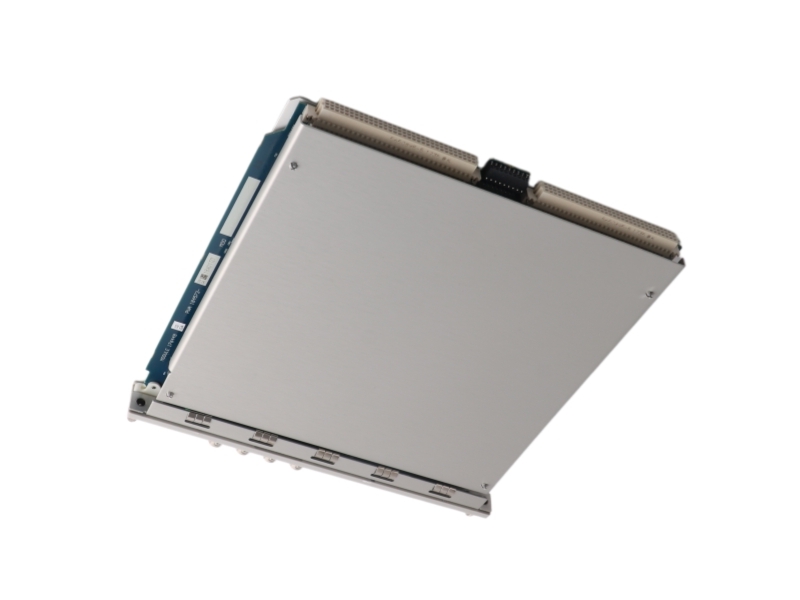

Bently Nevada 3500/92 136180-01 is a 3500/92 communication gateway module enabling Ethernet TCP/IP and serial Modbus connectivity, integrating 3500 rack monitoring data with PLC, DCS, and industrial automation systems.

Technical Data Summary

• Product overview: Bently Nevada 3500/92 136180-01 is a communication gateway module for the 3500 monitoring system, enabling data transfer between rack modules and external control systems.

• Power consumption: Operates efficiently with low power usage, typically 5.0–5.6 watts depending on RS232/RS422/RS485 configuration.

• Data acquisition: Collects real-time values, alarm states, and module statuses via high-speed internal rack network with update rates up to 1 second.

• Communication protocols: Supports Modbus RTU, Modbus/TCP, and proprietary Bently Nevada protocols for flexible industrial integration.

• Ethernet interface: Features 10 Mbps IEEE 802.3 Ethernet with RJ45 connection for reliable TCP/IP communication in automation systems.

• Environmental performance: Designed for industrial environments with operating temperatures from -30°C to +65°C and humidity tolerance up to 95% non-condensing.

FAQ

Q1: What is Bently Nevada 3500/92 136180-01 used for?
A1: Bently Nevada 3500/92 136180-01 is a communication gateway module that transfers vibration and monitoring data from the 3500 rack to external control systems like PLCs and DCS.

Q2: Which communication protocols does it support?
A2: It supports Modbus RTU (RS232/RS422/RS485), Modbus TCP/IP, and proprietary Bently Nevada Ethernet protocols for flexible industrial integration.

Q3: Does it support Ethernet connectivity?
A3: Yes, it uses a 10 Mbps IEEE 802.3 Ethernet interface with RJ45 connection for reliable TCP/IP communication.

Q4: What type of data can it transmit?
A4: It transmits real-time values, alarm conditions, module statuses, and time-stamped monitoring data from all 3500 rack modules.

Q5: What are its operating environmental limits?
A5: It operates reliably from -30°C to +65°C and supports up to 95% non-condensing humidity for harsh industrial environments.
