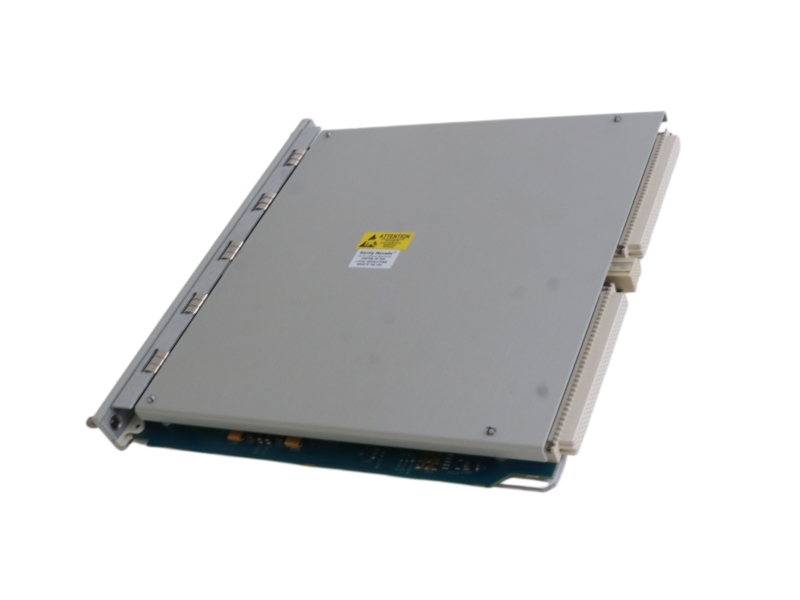

Bently Nevada 3500/22M 288055-01 is a Transient Data Interface (TDI) for 3500 monitoring systems, enabling continuous steady-state and transient data collection and Ethernet transmission to host software for analysis.

Features and benefits

• Seamless Integration: Interfaces 3500 monitoring systems with System 1 and 3500 Configuration software.
  Data Collection: Continuously captures steady-state and transient waveform data from M series monitors.
  Ethernet Communication: Transmits collected data efficiently to host software.
  Optional High-Resolution Capture: Supports dynamic data via Channel Enabling Disk.
  Rack Compatibility: Occupies Slot 1, next to power supplies, in every 3500 rack.
  Non-Critical Path: Ensures normal system operation while providing enhanced data functionality.

FAQ

Q1: What is the Bently Nevada 3500/22M 288055-01 used for?
A1: It is a Transient Data Interface (TDI) that connects 3500 monitoring systems to System 1 and 3500 Configuration software.

Q2: What type of data does the 3500/22M collect?
A2: It collects steady-state and transient dynamic (waveform) data from M series monitors.

Q3: Can the 3500/22M capture high-resolution dynamic data?
A3: Yes, using an optional Channel Enabling Disk, it can capture dynamic, high-resolution transient data.

Q4: Where is the 3500/22M installed in the rack?
A4: It occupies Slot 1, next to the power supplies, in every 3500 rack.

Q5: Does the 3500/22M affect the critical monitoring path?
A5: No, it provides additional data functions without impacting the normal operation of the monitoring system.
