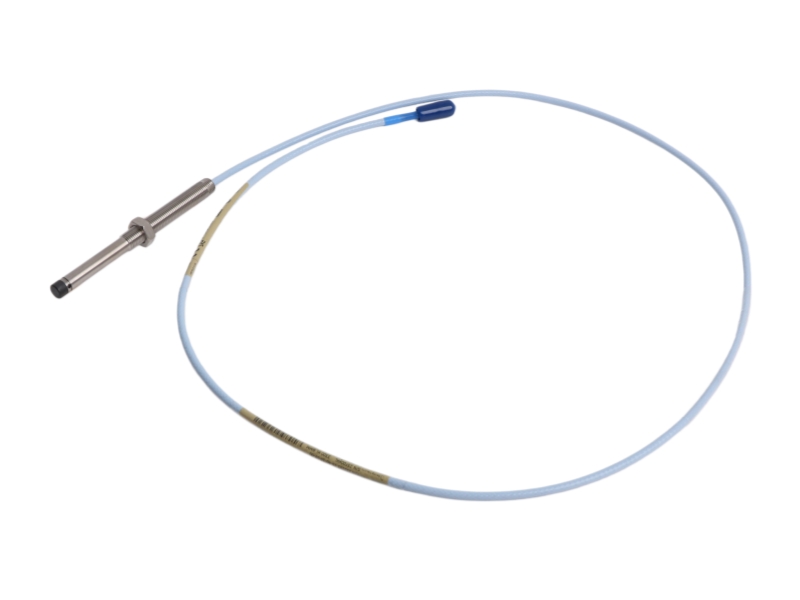

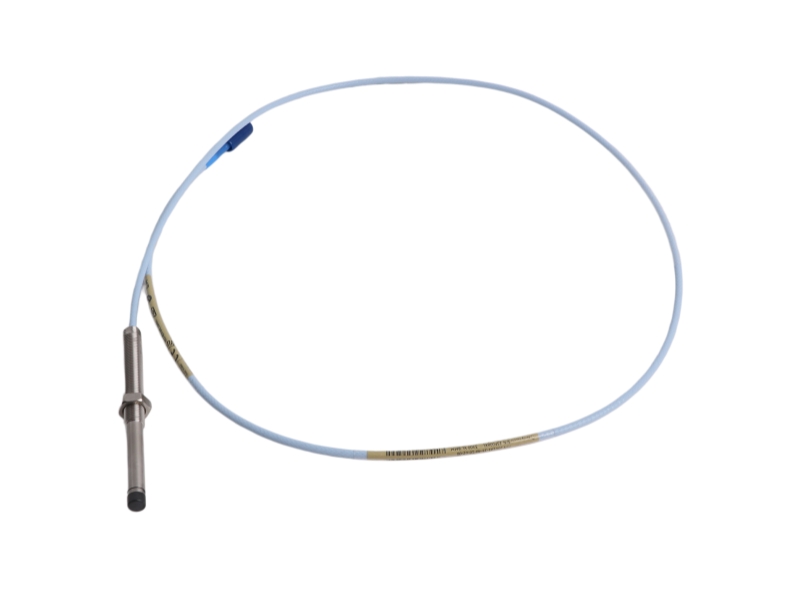

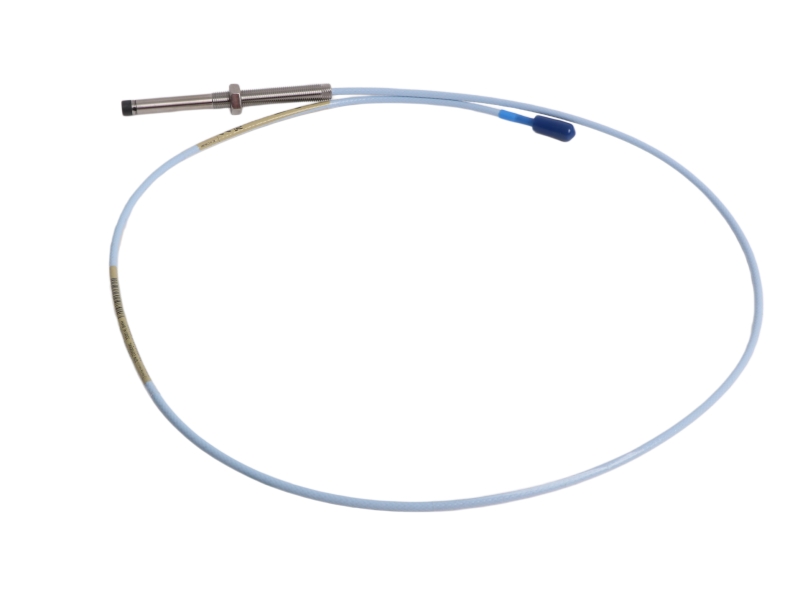

The Bently Nevada 330101-10-44-05-02-05 is a 3300 XL 8 mm probe engineered for stable proximity sensing, offering precise displacement tracking, durable construction, and reliable operation in demanding rotating machinery applications.
Specifications
Probe Tip Materia：Polyphenylene sulfide (PPS).
Probe Case Material：AISI 303 or 304 stainless steel (SST).
Standard cable：75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Extended Temperature Range cable：75Ω triaxial, perfluoroalkoxy(PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Tensile Strength (MaximumRated)：330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
Connector Material：Gold-plated brass or goldplated beryllium copper.
Standard Probe：-52°C to +177°C (-62°F to +350°F)
Extended Temperature Range Probe：-52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.
Dimension：1.5x1.3x113cm
Weight：0.08kg
