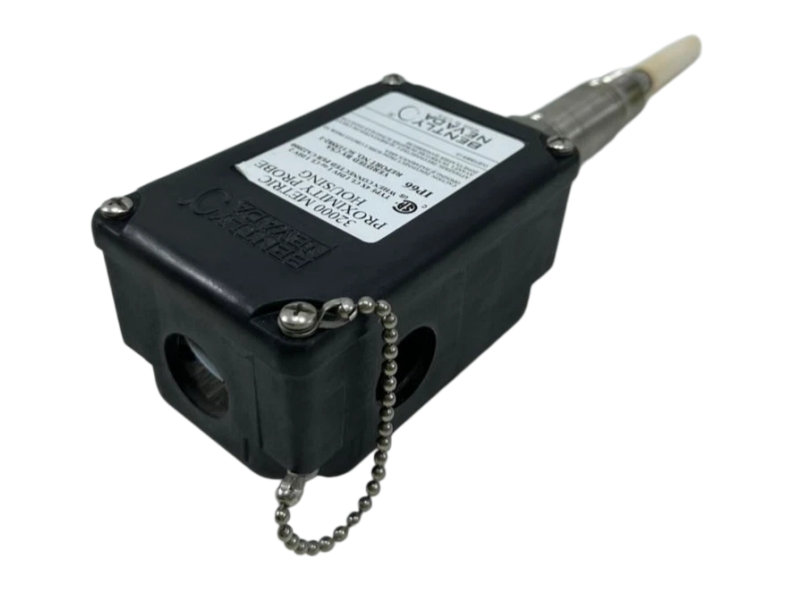

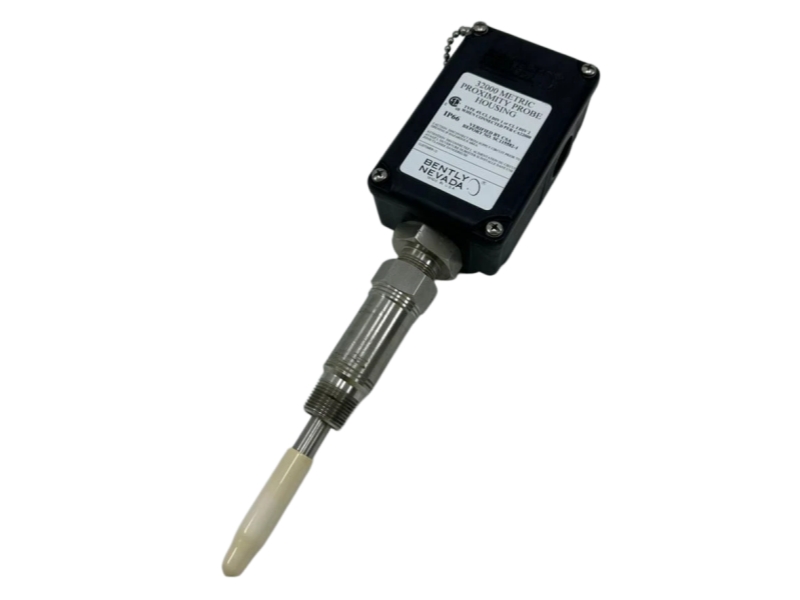

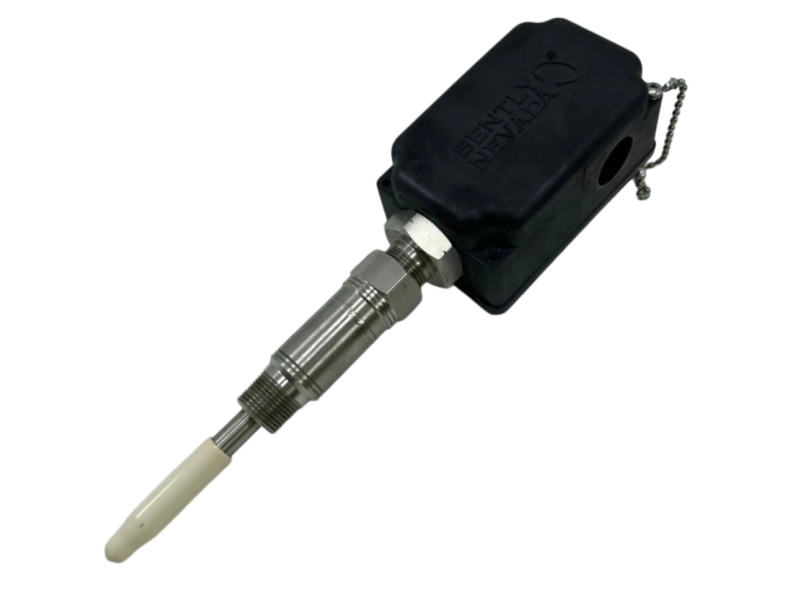

The Bently Nevada 32000-28-05-05-060-00-02 is a metric proximity probe housing assembly designed for external mounting of 3300 XL 8 mm probes. It features a corrosion-resistant PPS housing with a 0.5 m probe and 3/4-14 NPT mounting thread.
Specifications
Probe Cable Length：0.5 meter (20 inches) (Option B: 05)
Standoff Adapter Length (Option C)：50 mm (Option C: 05)
Probe Penetration Option (Option D)：60 mm (Option D: 060)
Fittings (Option E)：Without fittings; two plugs and two washers (Option E: 00)
Mounting Thread Option (Option F)：3/4-14 NPT (Option F: 02)
Housing Material：Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
Sleeve Material：AISI 304 stainless steel
Outer Sleeve and Exterior Screws：AISI 303 stainless steel
O-Ring Material：Neoprene
Protection Rating：Type 4X (CSA certified), IP66 (verified)
Recommended Torque (Retaining Nut)：29.4 N·m (260 in·lb)
Weight (Typical)：1.2 kg (2.6 lb)
Probe Temperature Range (Operating)：-51°C to +177°C (-60°F to +351°F) for 3300 XL 8 mm probe
Housing Impact Strength：Certified to withstand 4 Joule impacts at -39°C and 115°C; 7 Joule impact at ambient temperature
Housing Strength (Typical)：Supported 912 N (205 lb) in structural test
