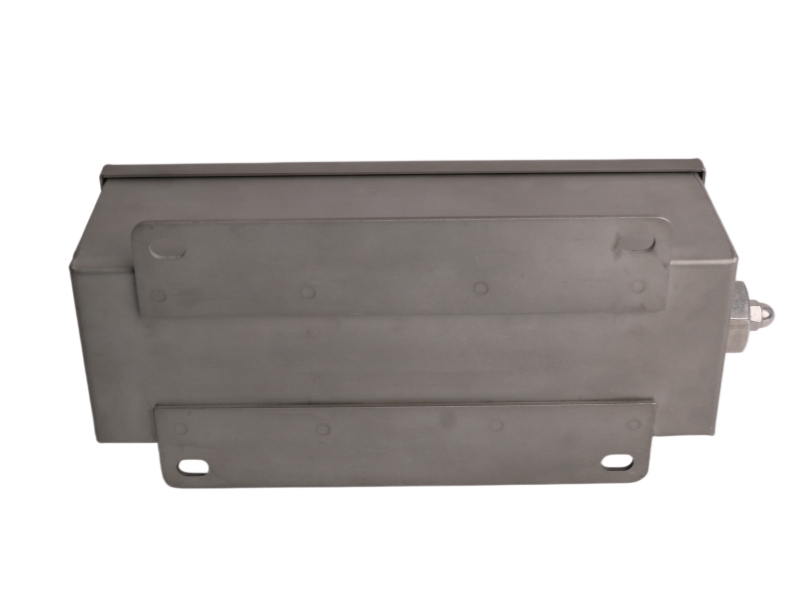

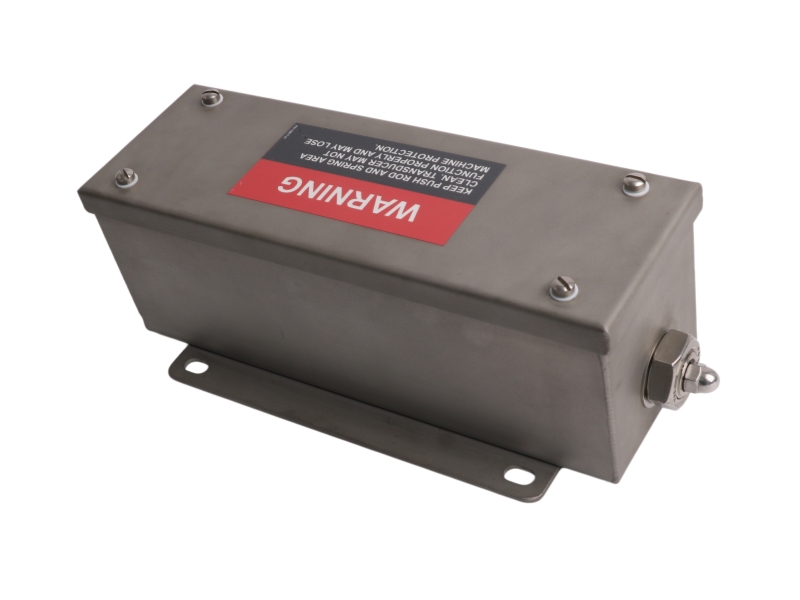

Bently Nevada 24765-02-01 — case expansion transducer assembly using LVDT technology to accurately monitor turbine thermal growth, ensuring reliable position measurement, early fault detection, and safe operation in TSI systems.
Specifications
- Input Power: +24 V DC, minimum 30 mA
- Scale Factor: 0.404 V/mm (10.25 V/in)
- Linear Range: ±25.4 mm (±1.0 in)
- Frequency Response (-3 dB): 15 Hz
- Output Impedance: 7 kΩ nominal
- Minimum Load Resistance: 100 kΩ
- Output Characteristics: <1% ripple, ±0.5% linearity, 0.125% stability
- Temperature Coefficient: 0.07%/°C
- Operating Temperature: -18°C to +71°C
- Storage Temperature: -54°C to +93°C
Application
