Bently Nevada 24765-01-01 Case Expansion Transducer Assembly

Inquiry now

24765-01-01 Product datasheet

Model number:	24765-01-01	Module Type：	Case Expansion Transducer Assembly
Manufacture:	Bently Nevada	Condition：	Brand New
Range of Product:	Bently Nevada	Lead time：	In Stock
Weight:	0.06kg	HS CODE：	8537101190
Dimension:	1.8x1.6x123cm	MOQ:	1
Product Origin:	USA	System：	TSI
Discontinued on:	active	Communication Service:	Ethernet router

24765-01-01 Functional Description

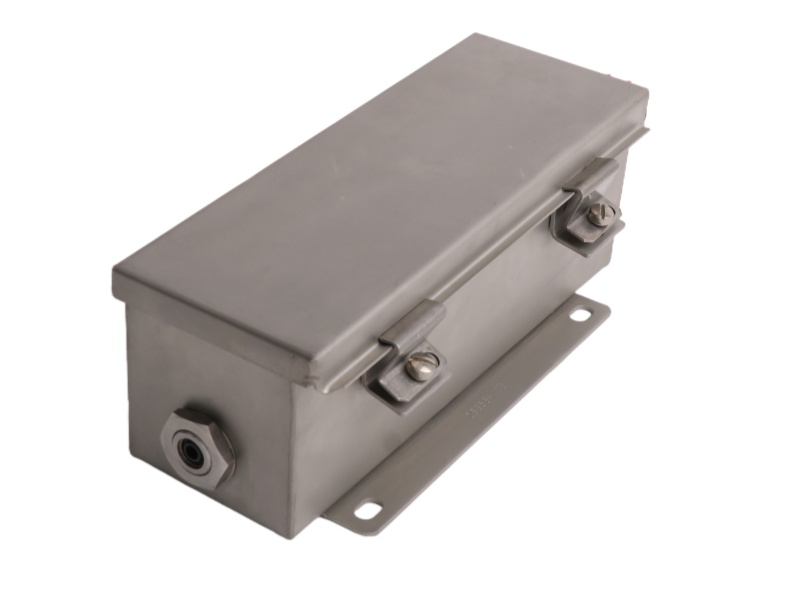

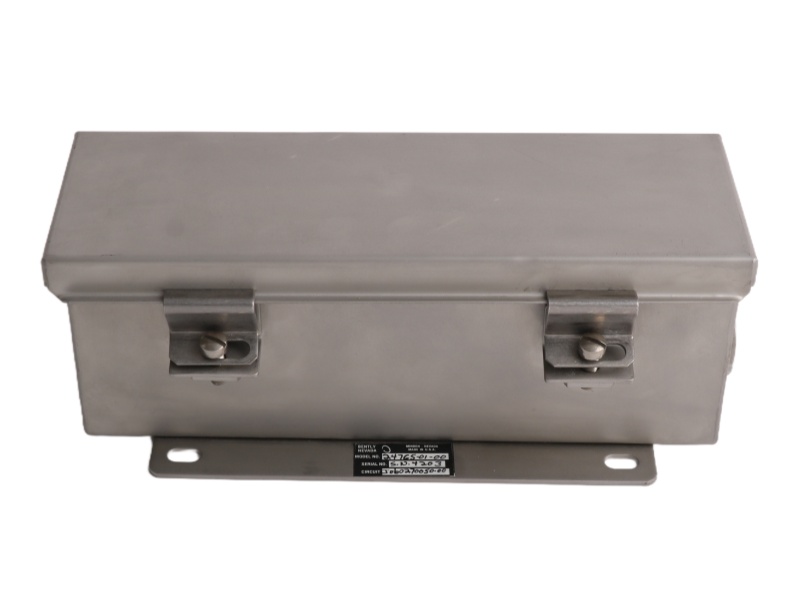

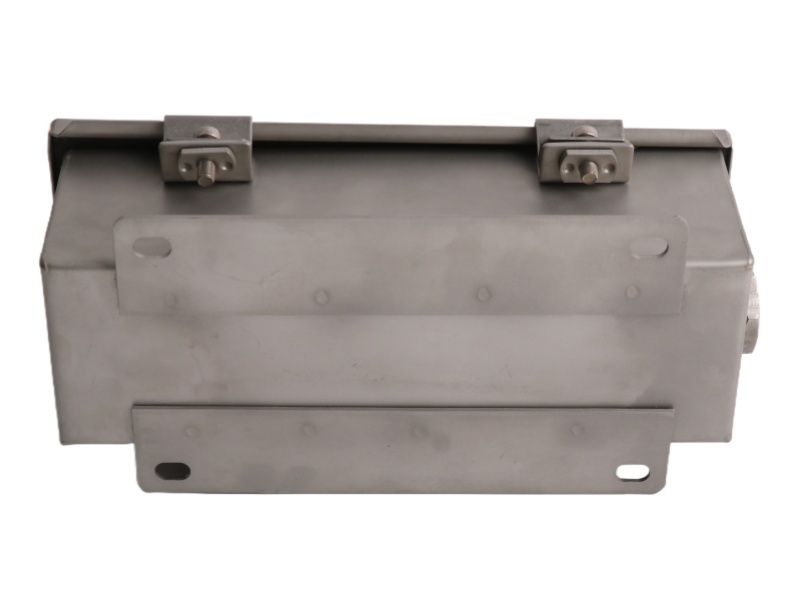

The Bently Nevada Case Expansion Transducer Assembly 24765-01-01 LVDT HSG Case Expansion Transducer System is a precision measurement device designed for accurate data acquisition in industrial and engineering applications. Its robust HSG case ensures durability and long-term performance, while the expanded sensing range accommodates a wide variety of monitoring needs. The Bently Nevada 24765-01-01 PDF also features a user-friendly design, making installation straightforward and efficient.

This versatile transducer system is widely used across multiple industries. In industrial monitoring, the Thermal expansion sensor Bently Nevada 24765-01-01 enables precise measurement of mechanical systems and processes. In the energy sector, it is applied to monitor turbine expansion and contraction, while in aerospace, it measures structural changes under varying conditions. It is also valuable for research and development applications requiring high-precision displacement measurements.

The Bently Nevada 24765-01-01 LVDT HSG Case Expansion Transducer System offers a measurement range of 0-10 inches, resolution of 0.001 inches, and operates in temperatures from -40°C to 85°C. Output options include analog 4-20mA or digital RS485, with an IP67 protection rating for harsh environments.

By utilizing the 24765-01-01 Case Expansion Transducer Systems Bently Nevada, users gain accurate and reliable measurements, durable performance, and an expanded application range. Its ease of installation and versatility make it an ideal solution for improving efficiency and reliability in monitoring and measurement processes.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Bently Nevada	330851-02-000-050-50-00-05	Bently Nevada	330104-00-12-10-02-05	Bently Nevada	330103-12-16-10-02-05
Bently Nevada	21747-040-01	Bently Nevada	330101-00-24-05-02-00	Bently Nevada	330101-00-44-10-02-05
Bently Nevada	330103-00-04-10-12-00	Bently Nevada	330903-00-04-05-02-00	Bently Nevada	330101-00-26-10-02-05
Bently Nevada	330103-01-06-05-02-05	Bently Nevada	330101-00-25-05-02-05	Bently Nevada	330101-00-18-10-02-05
Bently Nevada	330106-05-30-05-02-05	Bently Nevada	330103-00-21-05-11-05	Bently Nevada	330101-00-10-10-02-05
Bently Nevada	330104-00-08-10-01-00	Bently Nevada	330901-00-10-10-02-05	Bently Nevada	330907-05-30-05-02-00
Bently Nevada	330103-00-15-10-02-CN	Bently Nevada	330101-00-08-05-02-05	Bently Nevada	330101-00-20-90-02-05
Bently Nevada	330103-00-15-10-02-CN	Bently Nevada	330500-01-00	Bently Nevada	330103-00-04-10-12-00
Bently Nevada	330103-00-06-05-12-05	Bently Nevada	330101-00-53-10-02-05	Bently Nevada	330104-00-07-90-02-05
Bently Nevada	21000-34-05-15-056-04-02	Bently Nevada	21747-040-00	Bently Nevada	330703-000-178-10-02-00

Thermal Case Growth Measurements in Large Turbines

An important position measurement in Turbine Supervisory Instrumentation (TSI) is case expansion. Case expansion, sometimes referred to as shell expansion, is the thermal growth of the machine case as it expands during machine startup and on-line operations.

The case expansion transducer system is typically mounted on the foundation at the opposite end from where the turbine casing is attached to the foundation. It provides information about the growth of the machine case relative to the foundation.

Case expansion is a parameter that should be measured using a dual transducer arrangement. This arrangement provides information about the position of the sliding feet on the machine case. A condition that obstructs or jams one foot could distort the case and damage the machine. The dual case expansion transducer configuration, in conjunction with the 3300 or 3500 monitors, provides an alarm for this condition. The high-temperature dual case expansion transducer configuration is compatible only with the 3500/45 Position Monitor.

Case expansion measurements also enable determination of whether machine conditions are exceeding expected temperature growth differentials. This is primarily a startup parameter that verifies whether the machine casing and rotor grow thermally at nearly the same rate. Different rates of thermal growth can cause the rotating and stationary parts of the machine to rub. The case expansion transducer assembly consists of a linear variable differential transformer (LVDT), which is housed in a weatherproof, protective enclosure.
