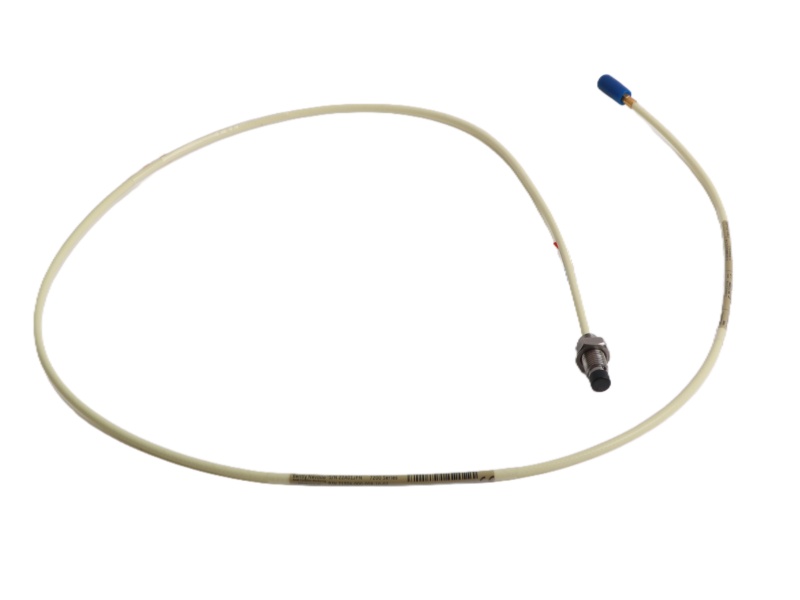

The Bently Nevada 3300 XL 8 mm Reverse Mount Probe 21504-000-08-10-02 is a high-precision proximity sensor developed as part of the Bently Nevada 7200 series. Designed for both static and dynamic distance measurements, it operates as a non-contacting, gap-to-voltage transducer system, providing accurate displacement measurements without physical contact. Its reliability and accuracy make the Bently Nevada 21504-000-08-10-02 suitable for a wide range of industrial applications where precision is critical.

Primarily used for vibration and shaft position monitoring, the Bently Nevada 21504-000-08-10-02 3300 XL 8 mm Reverse Mount Probe is compatible with nearly any type of machinery, including electric motors, generators, pumps, compressors, centrifuges, and both gas and steam turbines. Its design ensures compliance with API 670 specifications, supporting consistent and safe operation in demanding environments.

The sensor offers a linear measuring range of 80 mils (2 mm) and a frequency response from 0 Hz (DC) to 10 kHz. This allows the Probe 21504-000-08-10-02 Bently Nevada to capture critical measurements such as radial vibration for detecting bearing issues, axial thrust position for wear assessment, and average shaft radial position to monitor rotor stability.

Additional features of the Proximity Sensor Bently Nevada 21504-000-08-10-02 include its compact design and lightweight construction, weighing only 0.20 lbs with dimensions of 8.75 x 8.00 x 1.25 inches. Its robust build ensures long-term durability and consistent performance, making it a dependable choice for precise machinery monitoring and diagnostic applications.
