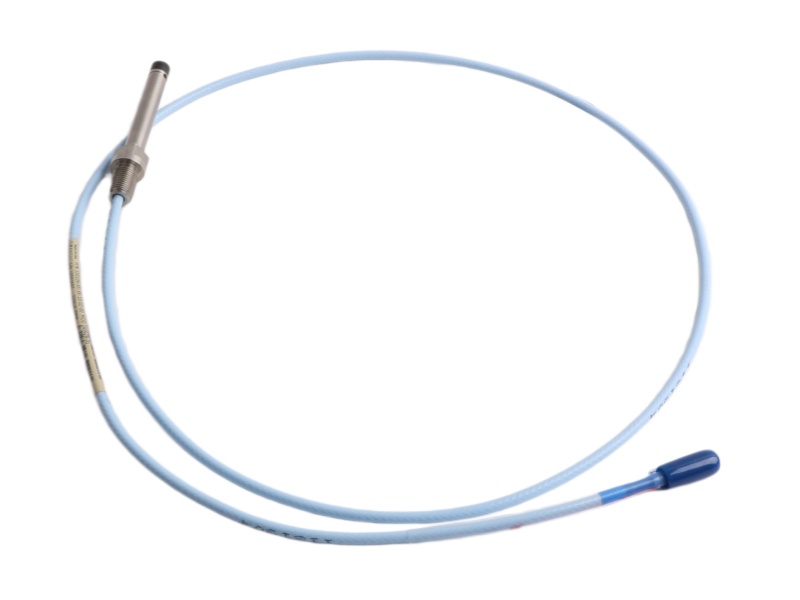

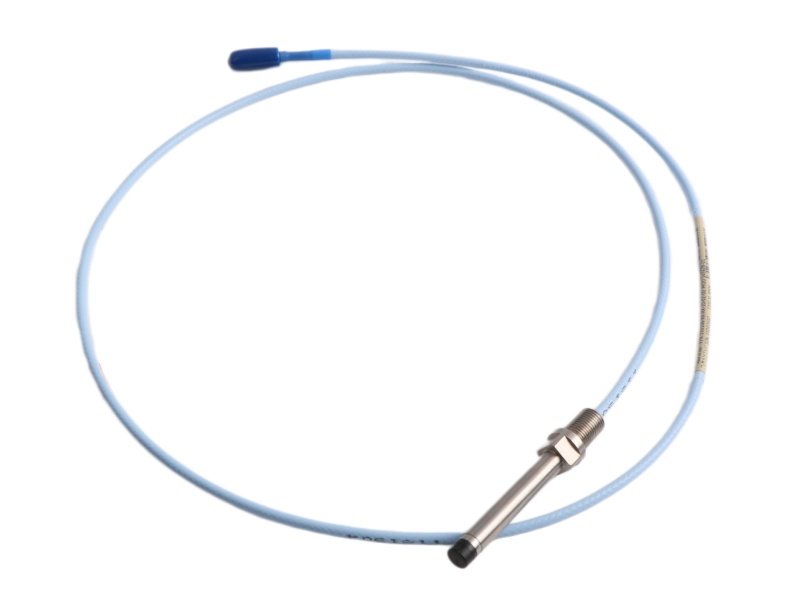

The Bently Nevada 330400 and 330425 Accelerometer 130539-20 is a 20-foot, 3-conductor shielded cable with 18 AWG wire. It features a 3-socket plug with fluorosilicone boot and terminal lugs for reliable signal transmission.

Environmental Strength

Cable Type: 3-conductor shielded cable for reliable signal transmission.

Wire Gauge: 18 AWG (1.0 mm²) for robust electrical performance.

Termination: 3-socket plug with fluorosilicone elastomer boot at one end, terminal lugs at the other.

Length: 20-foot cable for flexible installation options.

Temperature Rating: Suitable for harsh environments with fluorosilicone boot protection.

Compatibility: Designed for use with accelerometers in critical machinery monitoring applications.

FAQ

Q1: What is the cable type of the 130539-20?

A1: It is a 3-conductor shielded cable with 18 AWG (1.0 mm²) wire.

Q2: What are the termination options for this cable?

A2: It features a 3-socket plug with fluorosilicone elastomer boot at one end and terminal lugs at the other.

Q3: What length options are available for the 130539-20?

A3: It is available from a minimum of 2.0 feet (0.6 m) to a maximum of 99 feet (30 m), with the 130539-20 being a 20-foot configuration.

Q4: What is the purpose of the fluorosilicone elastomer boot?

A4: It provides environmental protection for the connection in harsh industrial conditions.

Q5: Is this cable compatible with Bently Nevada accelerometers?

A5: Yes, it is designed for use with accelerometers in critical machinery monitoring applications.
