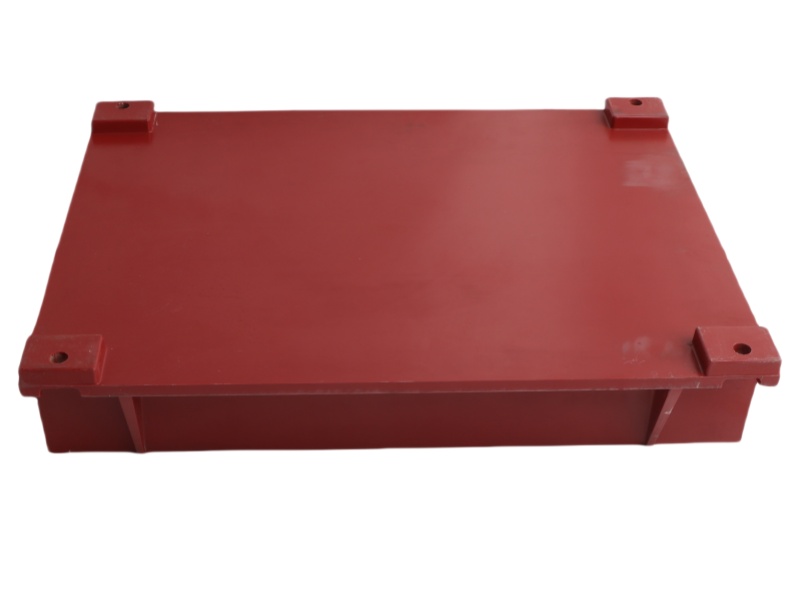

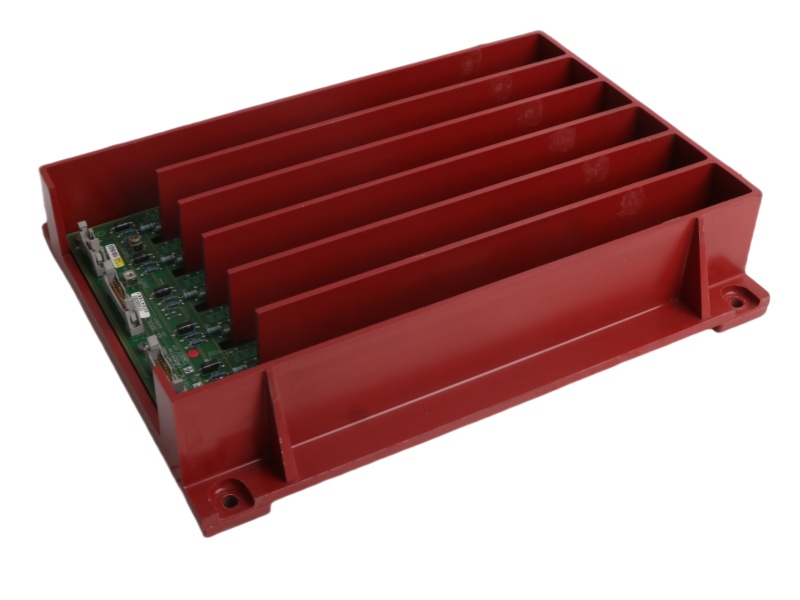

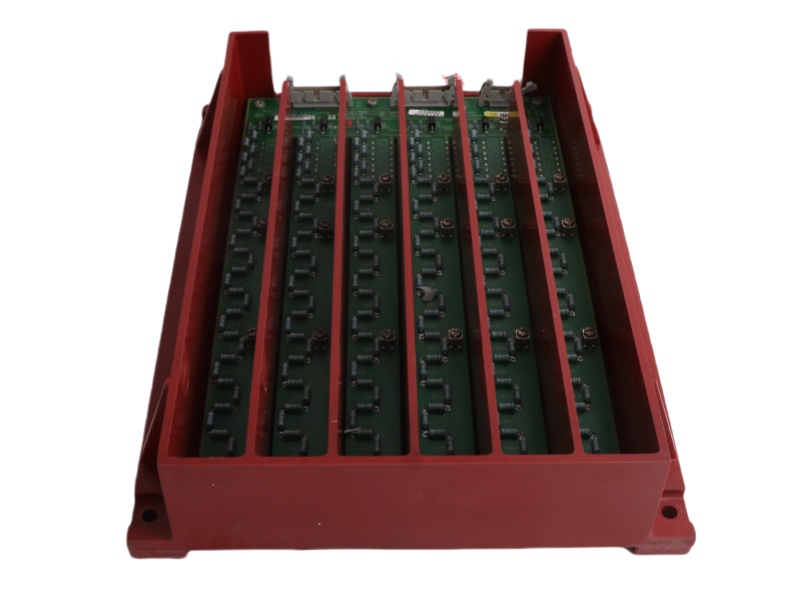

81000-199-53-R Product datasheet
|
Model number: |
81000-199-53-R |
|
Module Type： |
Interface Board |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
Allen-Bradley |
|
Lead time： |
In Stock |
|
Weight: |
3.6kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
38.3x28.8x7.8cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
81000-199-53-R Functional Description
The 81000-199-53-R CIRCUIT BOARD AB is a precision-engineered Voltage Feedback Interface Board designed to deliver accurate and reliable analog signal processing in demanding industrial automation environments. With its ±10V DC input range and high 1MΩ input impedance, the 81000-199-53-R Allen Bradley PDF ensures minimal signal loading, preserving signal integrity across various control applications.
This high-performance module features a 16-bit resolution (0.15mV) and an accuracy of ±0.1% full scale, making the ROCKWELL 81000-199-53-R PLCs/Machine Control ideal for applications requiring fine control and precise feedback. The buffered 0-10V DC output ensures a stable signal for downstream systems, enhancing the overall reliability of your automation processes.
Powered by a 24V DC supply with ±10% tolerance and drawing only 50mA, the Voltage Feedback Interface Board Allen-Bradley 81000-199-53-R offers efficient performance with low power consumption. Its 10kHz bandwidth (-3dB) supports high-speed signal transmission, suitable for dynamic control environments.
Engineered by Allen-Bradley, a trusted name in industrial automation, the Allen-Bradley 81000-199-53-R Interface Board Voltage Feedback Interface Board provides seamless integration and long-term stability, making it a dependable component in any advanced control system.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
