80190-560-02-R Product datasheet

80190-560-02-R Functional Description

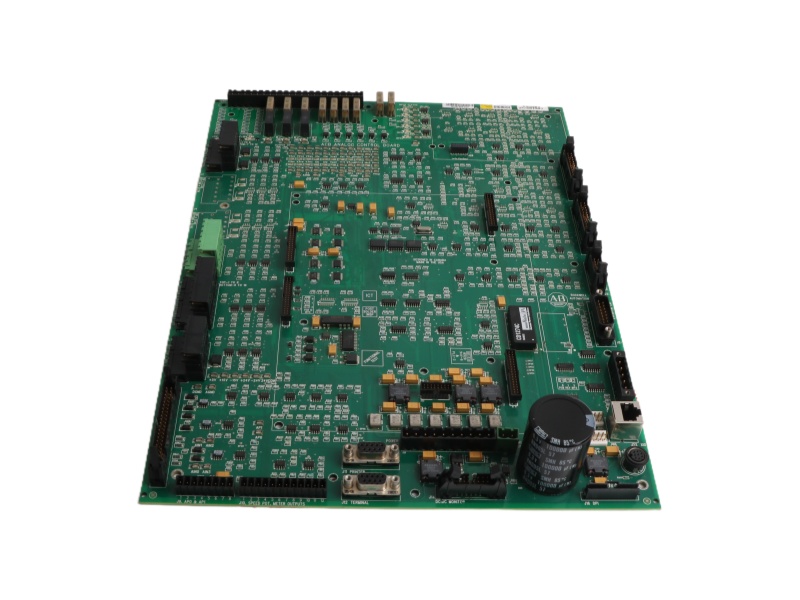

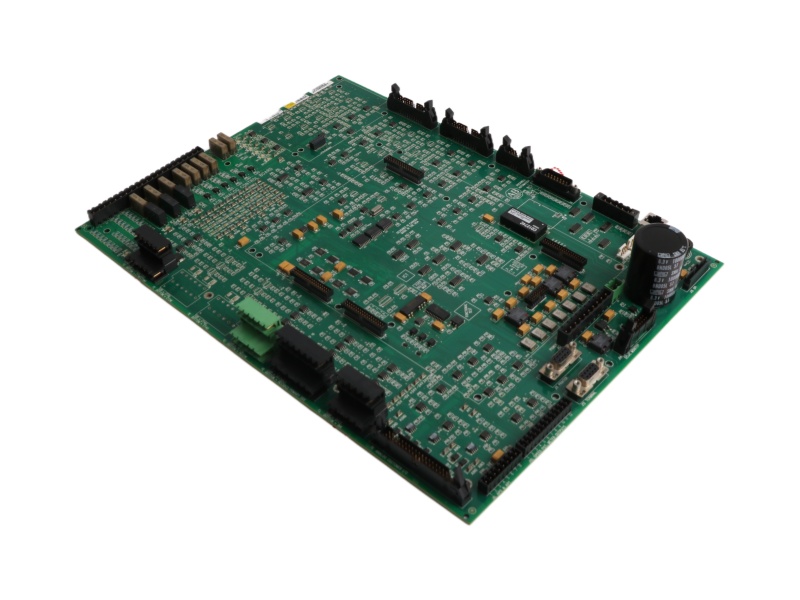

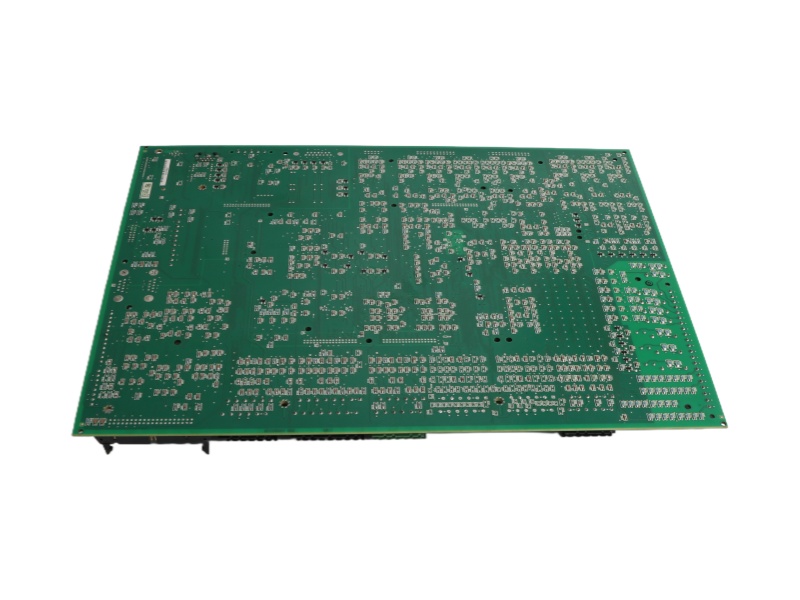

The 80190-560-02-R Allen-Bradley  Analog Control Board is a specialized ACB (Analog Control Board) designed exclusively for the PowerFlex 7000 series of medium voltage AC drives. This critical component, now listed as discontinued by the original manufacturer, was integral to the drive's control system, operating specifically with PWM (Pulse Width Modulation) signals to manage motor functions.

As a printed circuit board (PCB), the primary role of the Allen-Bradley 80190-560-02-R was to handle analog control processes within the larger drive architecture. Its discontinuation means that original factory support and warranties are no longer available, placing emphasis on alternative sources for maintenance and repair. For qualified personnel working with these complex systems, understanding the function and troubleshooting of this specific control board is essential for sustaining the operational life of existing PowerFlex 7000 drives.

It is crucial to note that technical documentation for the 80190-560-02-R Control Board AB is intended for skilled service technicians who possess a strong foundation in electrical systems and safety procedures. These individuals must be experienced with the necessary troubleshooting equipment and understand the risks involved in servicing medium voltage equipment. The complexity of the PowerFlex 7000 drive demands that only personnel with this specific expertise attempt any diagnostic or repair procedures involving this board.

When sourcing the ROCKWELL Industrial Computer 80190-560-02-R today, users will find it on the industrial aftermarket, where suppliers like Radwell often provide a two-year warranty to replace the voided original manufacturer coverage. This makes the Analog Control Board Allen Bradley 80190-560-02-R a repairable component for maintaining legacy systems, ensuring that critical drive assets can remain in service despite its official discontinued status.
