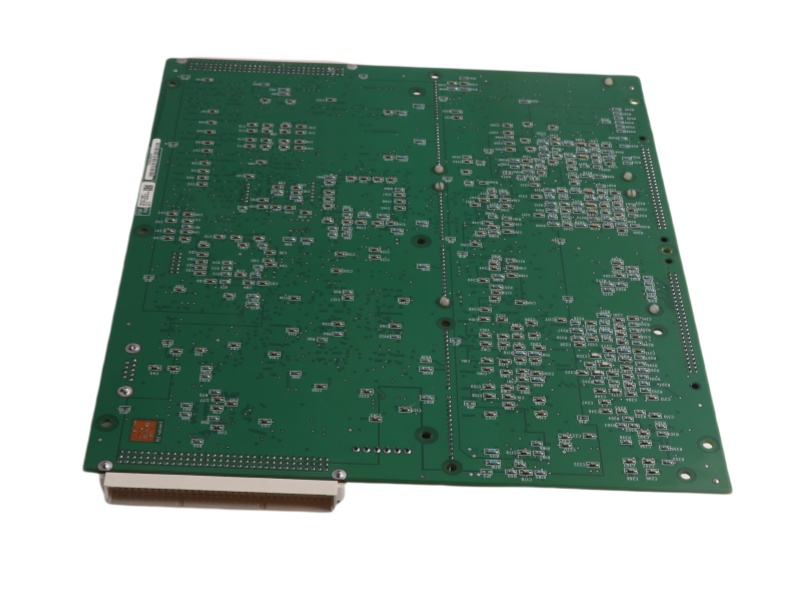

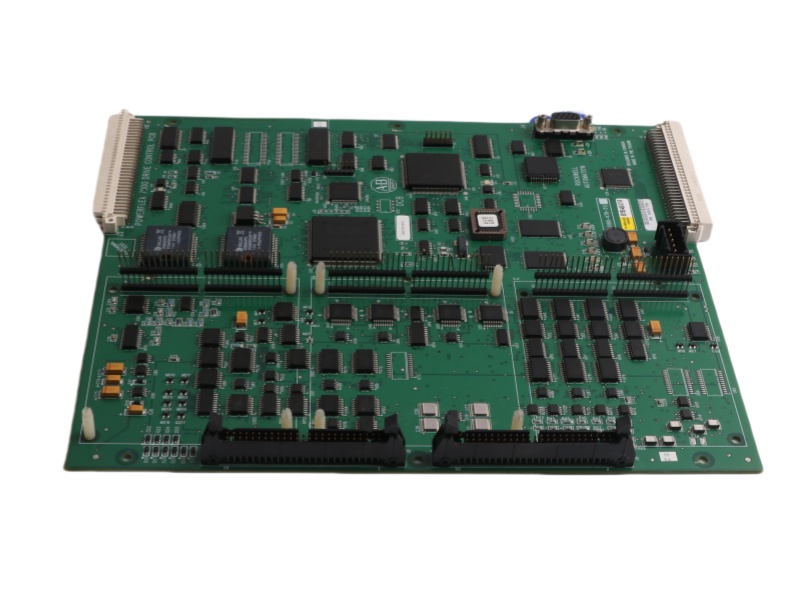

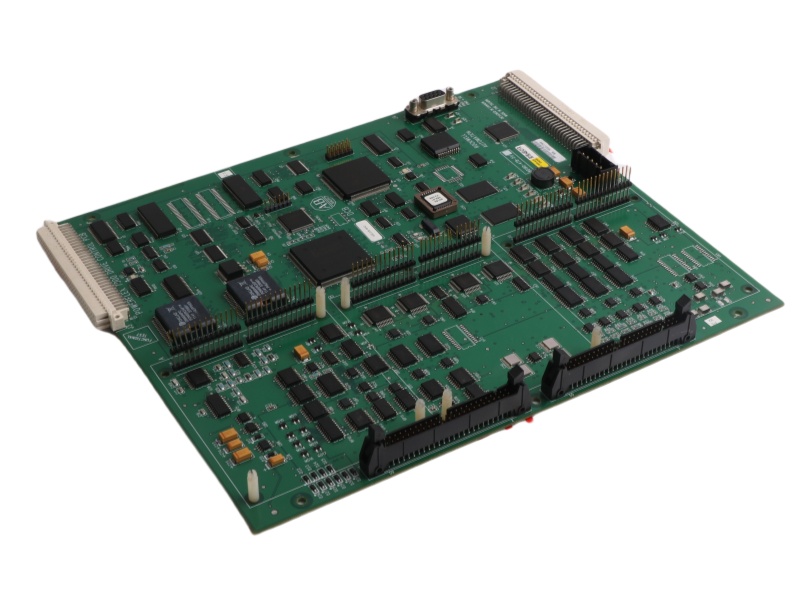

Allen Bradley 80190-480-01-R Drive Control Board

Inquiry now

80190-480-01-R Product datasheet

Model number:	80190-480-01-R	Module Type：	Drive Control Board
Manufacture:	Allen Bradley	Condition：	Brand New
Range of Product:	Allen Bradley	Lead time：	In Stock
Weight:	0.46 kg	HS CODE：	8537101190
Dimension:	27.8x21.4x2.8cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

80190-480-01-R Functional Description

The Extended I/O Board 80190 Allen Bradley is a high-performance drive control board designed for industrial automation applications. This versatile module, manufactured in the USA by Rockwell Automation's Allen-Bradley division, supports control of up to 4 motors simultaneously with a 480V AC input voltage rating. The Analog Control Board 80190-480-01-R delivers reliable operation with a 15A current capacity and 7.2kW power handling capability, making it suitable for medium-power motor control applications.

Featuring comprehensive I/O capabilities, the 80190-480-01-R POWERFLEX DRIVE CONTROL BOARD includes 16 digital inputs and 16 digital outputs for flexible system integration. With compact dimensions of 27.8×21.4×2.8cm and a lightweight design (0.46kg), this control board offers space-efficient installation while maintaining robust performance. The Allen Bradley 80190-480-01-R operates reliably within a temperature range of 0°C to 40°C (32°F to 104°F), with an even wider storage temperature range of -40°C to 85°C (-40°F to 185°F) for durability in various environments.

As a genuine Allen-Bradley component with spare model number 8019048001R, the DRIVE CONTROL BOARD Allen Bradley 80190-480-01-R is classified under tariff code 8537101190. This drive control board is typically shipped from Xiamen, China, ensuring efficient logistics for global customers. Its design reflects Allen-Bradley's commitment to quality and reliability in industrial automation components.

The Allen Bradley 80190-480-01-r Drive Control Board is particularly valuable for applications requiring precise multi-motor control in manufacturing and processing environments. Its combination of power handling capacity, extensive I/O options, and compact form factor make it an excellent choice for system integrators looking for reliable motor control solutions in industrial automation projects.
