1763-L16BBB Product datasheet

1763-L16BBB Functional Description

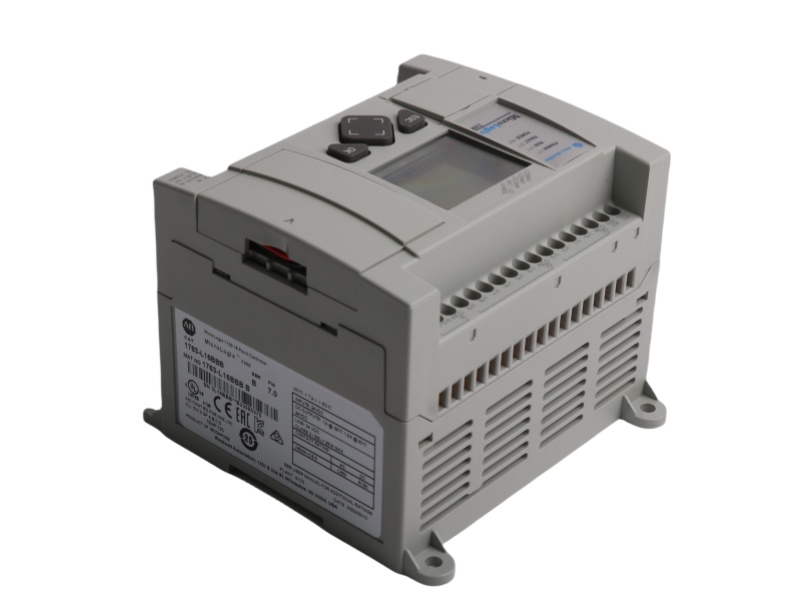

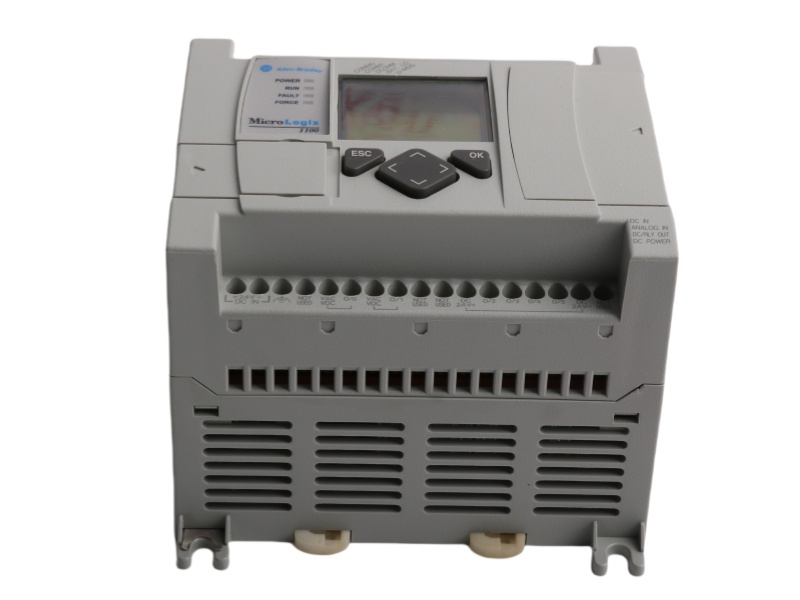

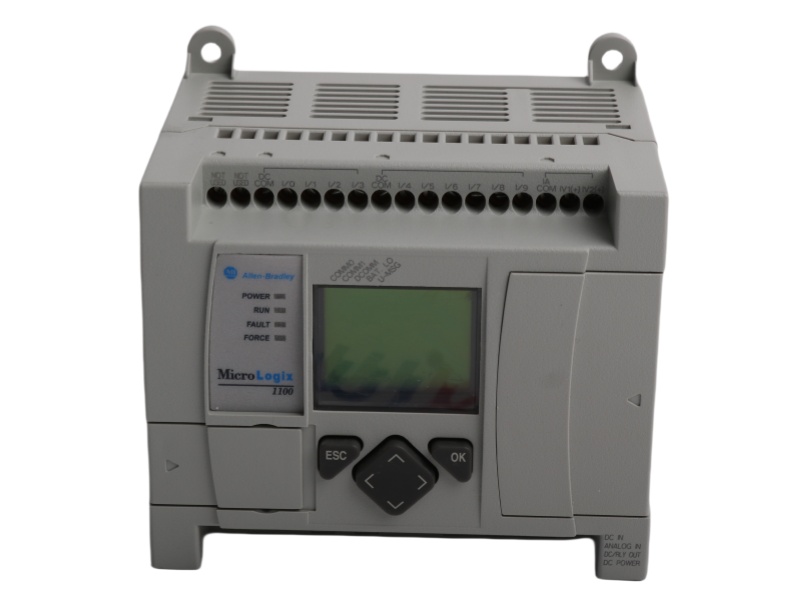

The MicroLogix 1100 16 Point Controller Allen Bradley 1763-L16BBB DCS Module Servo system is a MicroLogix 1100 series programmable controller designed for industrial automation. It features 16 I/O points, including 10 digital inputs (24V DC), 2 relay outputs, and 4 FET outputs. Additionally, it has 2 analog voltage inputs (0-10V DC, 10-bit resolution) and an integrated LCD display for easy monitoring. The controller operates on 24V DC power (Class 2 SELV) and supports expansion via the 1763-MM1 memory module, making it a flexible solution for small to medium automation tasks.

A key feature of the 24 Volts DC digital input AB 1763-L16BBB Manufacturing Automation I/O is its built-in Ethernet interface, enabling high-speed communication at 10/100 Mbps. It supports twisted-pair (10/100Base-T) connections and can integrate with fiber optic, coaxial, or broadband networks using media converters. This allows seamless connectivity with other industrial devices, HMIs, and SCADA systems. However, actual performance depends on factors like message size, frequency, network load, and application program efficiency, ensuring adaptability in diverse automation environments.

The DC operated MicroLogix 1100 controller 1763-L16BBB Two-relay 24 Volts DC FET outputs is designed for reliability in demanding industrial settings. Its compact form factor, combined with relay outputs (125V DC / 120-240V AC) and FET outputs, ensures compatibility with various control applications. The MicroLogix 1100 series provides robust processing power for logic control, while the LCD display offers real-time diagnostics, simplifying troubleshooting and maintenance.

Ideal for machine control, process automation, and small-scale systems, the Allen-Bradley 1763-L16BBB 24 Volts DC digital input balances performance and affordability. Its Ethernet connectivity enables remote monitoring and integration into larger networks, while the analog and digital I/O supports diverse sensor and actuator requirements. As part of the MicroLogix 1100 family, it remains a trusted choice for engineers seeking a reliable, scalable PLC solution.
