1761-L32AWA Product datasheet
|
Model number: |
1761-L32AWA |
|
Module Type： |
MicroLogix 1000 Controller Unit |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
Allen-Bradley |
|
Lead time： |
In Stock |
|
Weight: |
0.5kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
10.2x7.6x20.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1761-L32AWA Functional Description

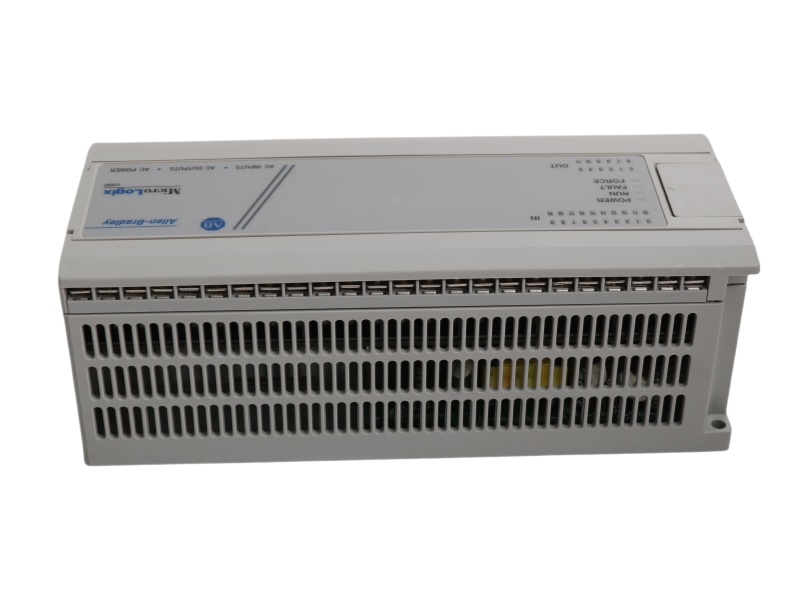

The 1761-L32AWA MicroLogix 1000 Controller Unit AB is a versatile MicroLogix 1000 PLC featuring 20x 120V AC inputs and 12x relay outputs (24-240V AC/DC), ideal for small-scale automation applications. This compact controller (7.87×3.15×2.87 inches) operates on 120/240V AC power and includes 1KB EEPROM memory supporting 737 instructions. The 1761-L32AWA ROCKWELL PLC Module excels in basic logic operations with a fast 1.56ms execution time, handling timers, counters, and shift registers for machine control.

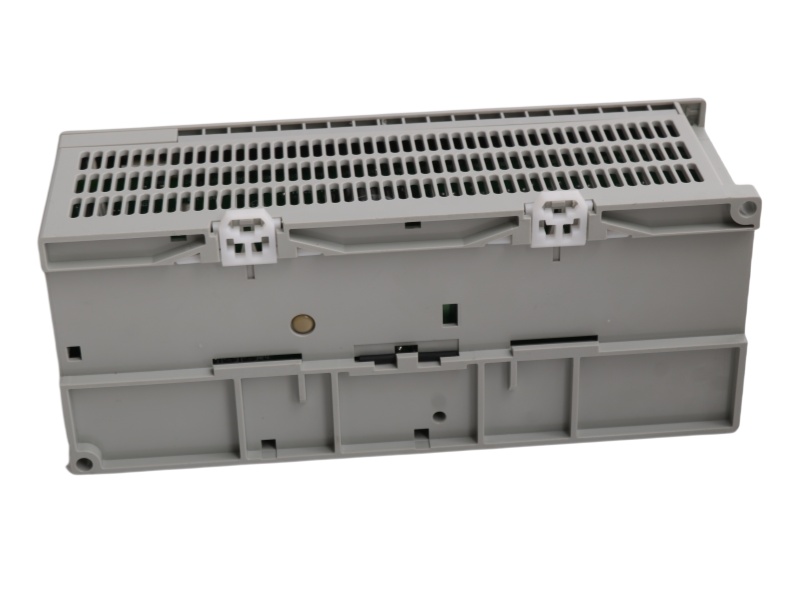

Designed for flexible installation, the Programmable Logic Controller Allen Bradley 1761-L32AWA Programmable Logic Controller Allen Bradley 1761-L32AWA supports both DIN-rail and panel mounting (with 2" clearance requirements) in non-hazardous or Class 1 Div 2 areas. Its communication capabilities include an RS-232 port (DF1/DH485 protocols) for HMI/SCADA connectivity and optional DeviceNet integration via 1761-NET-AIC. The Allen-Bradley 1761-L32AWA accommodates 14-22 AWG wires (16-22 AWG stranded) and withstands 7-9g shock vibrations depending on mounting configuration.
With an operating range of 0°C to +40°C, the AB 1761-L32AWA Controller Unit provides reliable discrete control for packaging, material handling, and simple process applications. Its integrated power supply and I/O simplify wiring, while the robust instruction set supports basic to intermediate automation tasks. The Allen-Bradley 1761-L32AWA maintains Rockwell Automation's quality standards, ensuring durability in industrial environments despite its compact footprint.
As part of the MicroLogix 1000 family, the Allen-Bradley 1761-L32AWA In Stock offers a cost-effective PLC solution for OEMs and small systems. Programming via RSLogix 500 with 1761-CBL series cables ensures easy deployment. While newer controllers have superseded it, this unit remains a practical choice for legacy system maintenance or applications requiring simple relay-based control with AC I/O capabilities.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Allen Bradley |
1783-US08T |
Allen Bradley |
1784-PM16SE |
Allen Bradley |
1785-V80B |
|
Allen Bradley |
1783-US05T |
Allen Bradley |
1784-PKTX |
Allen Bradley |
1785-V40V |
|
Allen Bradley |
1783-MX08T |
Allen Bradley |
1784-PKTS |
Allen Bradley |
1785-V40L |
|
Allen Bradley |
1783-MS10T |
Allen Bradley |
1784-PCMK |
Allen Bradley |
1785-PFB |
|
Allen Bradley |
1783-ETAP1F |
Allen Bradley |
1784-PCMC1 |
Allen Bradley |
1785-ME32 |
|
Allen Bradley |
1783-ETAP |
Allen Bradley |
1784-PCIS |
Allen Bradley |
1785-ME16 |
|
Allen Bradley |
1783-EMS08T |
Allen Bradley |
1784-KTXD |
Allen Bradley |
1785-LT3 |
|
Allen Bradley |
1783-BMS10CL |
Allen Bradley |
1784-KTX |
Allen Bradley |
1785-LT/B |
|
Allen Bradley |
1783-BMS10CGP |
Allen Bradley |
1784-KTCX15 |
Allen Bradley |
1785-L80C15 |
|
Allen Bradley |
1775-SR5 |
Allen Bradley |
1784-KTCS |
Allen Bradley |
1785-L80C |

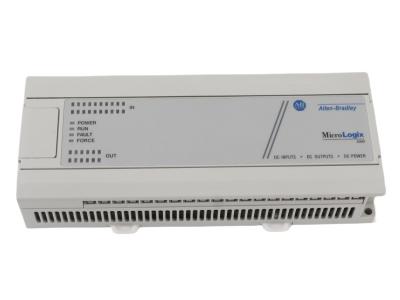

Allen-Bradley MicroLogix 1000 Controller: Compact PLC for Basic Automation
The MicroLogix 1000 Controller is Rockwell Automation's entry-level PLC designed for simple industrial control applications. This compact unit features integrated I/O (up to 20 digital inputs/12 relay outputs), 1KB memory, and operates on 120/240V AC power. With dimensions of just 200×80×73mm (7.87×3.15×2.87 inches), it's ideal for space-constrained installations while maintaining robust performance in 0°C to +60°C environments.
Key capabilities include:
Fast 1.56ms scan time
Basic instruction set (timers/counters/bit logic)
RS-232 communication (DF1/DH485 protocols)
DIN-rail or panel mounting
Shock/vibration resistance
The MicroLogix 1000 supports simple machine automation, lighting control, and material handling systems. Its maintenance-friendly design and Rockwell reliability make it a cost-effective solution for small-scale automation needs.
