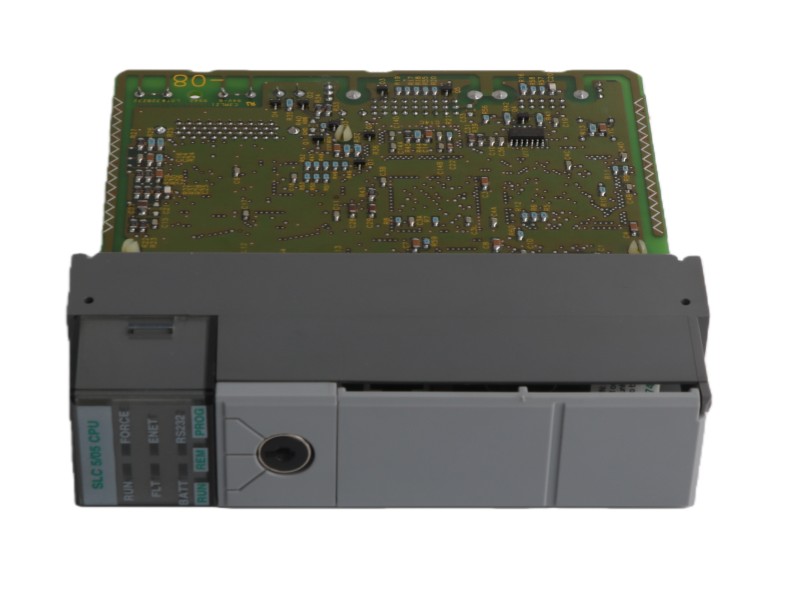

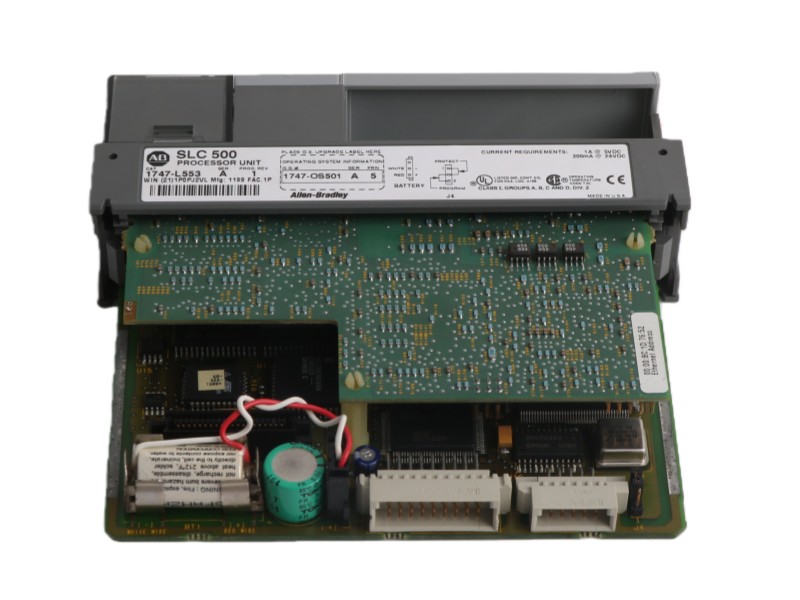

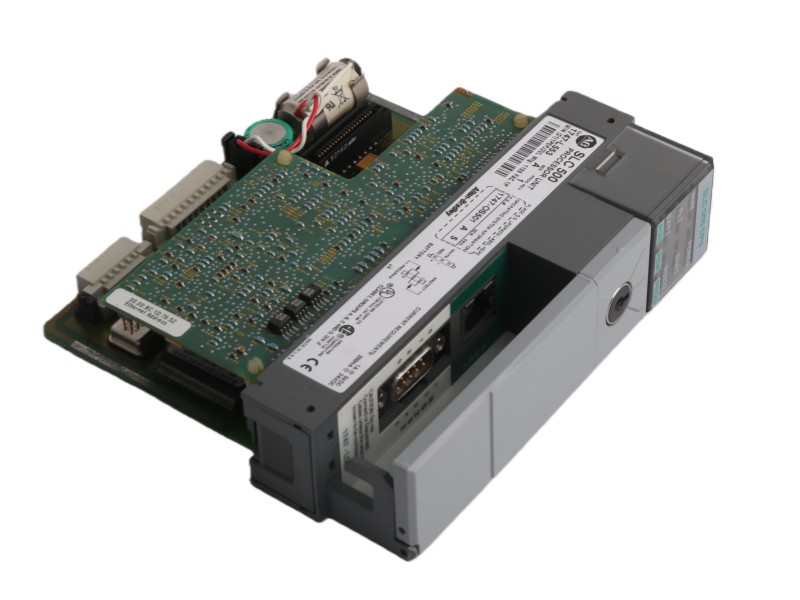

The SLC 5/05 64K Controller Allen-Bradley 1747-L553 is an SLC 5/05 processor featuring a backplane-compatible memory module for program storage. It supports Ethernet/IP communication and is designed for reliable industrial automation control.

Product Advantages

Supports modular memory for flexible data storage.

Compatible with standard memory module sockets.

Enables secure and firm installation of components.

Designed for easy removal and replacement processes.

Integrates with multi-chassis power configurations.

Features clear terminal markings for simplified wiring.

FAQ

Q1: What is the Allen‑Bradley 1747‑L553?

A1: The Allen‑Bradley 1747‑L553 is a SLC 5/05 programmable logic controller (PLC) processor module for the SLC 500 system, featuring Ethernet/IP, RS‑232, and RS‑485 communication ports.

Q2: What communication protocols does the 1747‑L553 support?

A2: It supports Ethernet/IP, DH+, RS‑232 (DF1 full‑duplex/half‑duplex), and Modbus RTU (via RS‑485) for industrial networking and device integration.

Q3: What is the maximum I/O capacity of the 1747‑L553?

A3: The 1747‑L553 supports up to 4096 digital I/O points and 256 analog I/O points in a local chassis, with expansion via remote I/O racks.

Q4: What software is used to program the 1747‑L553?

A4: It is programmed using RSLogix 500 (or Studio 500 Logix Emulate for legacy support), which provides ladder logic, function block, and structured text programming.

Q5: Is the 1747‑L553 still supported by Rockwell Automation?

A5: While the 1747‑L553 is a legacy product, Rockwell Automation continues to offer limited support (repair, spare parts, and documentation); new projects are recommended to migrate to ControlLogix or CompactLogix platforms.
