1734-IE4C Product datasheet

1734-IE4C Functional Description

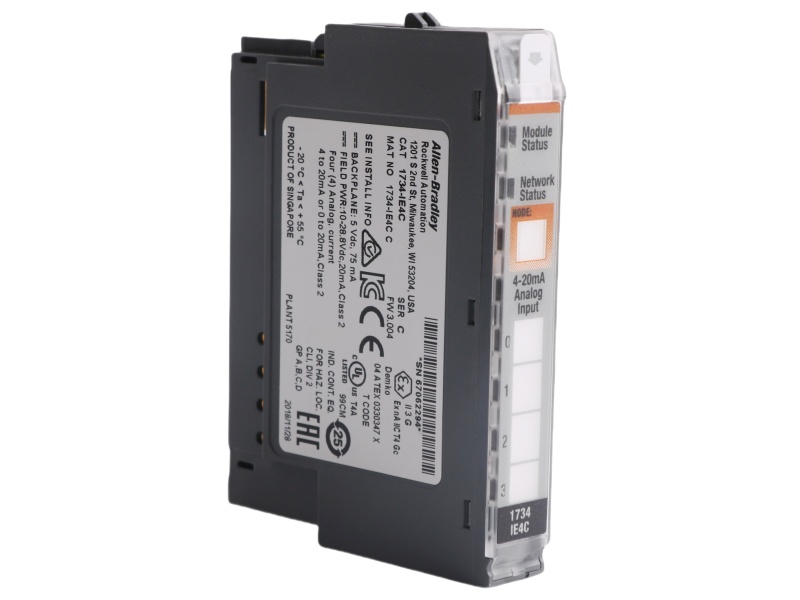

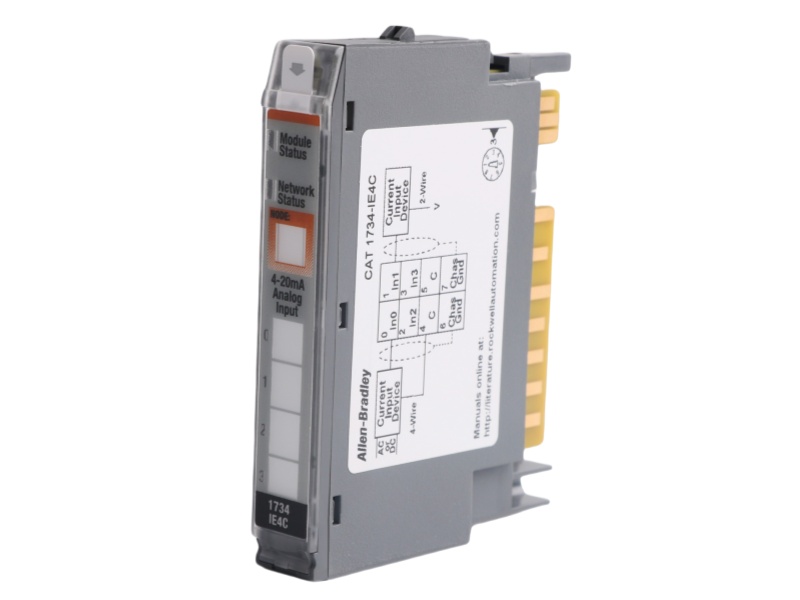

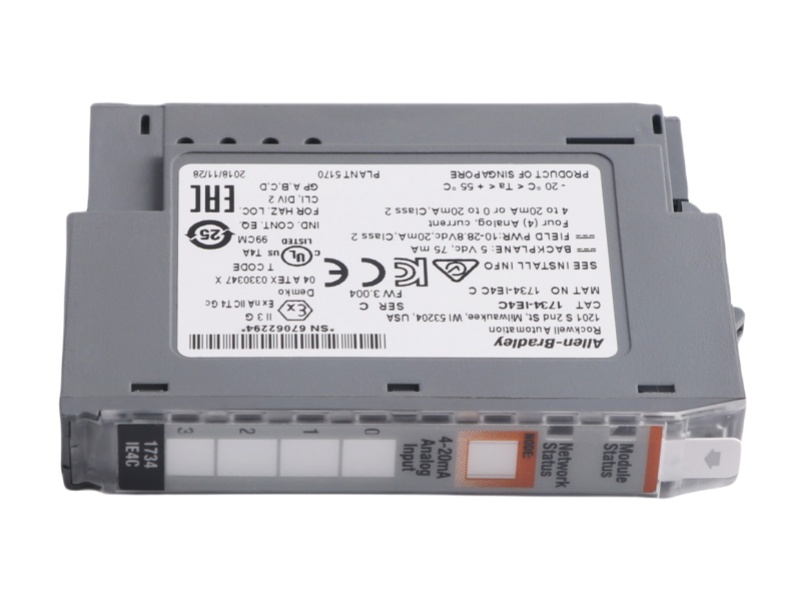

The POINT I/O 4 POINT ANALOG INPUT Rockwell1734-IE4C is a high-density analog input module designed for the POINT I/O system, offering four isolated current input channels in a compact form factor. This versatile module supports standard current ranges including 0-20mA and 4-20mA signals with 16-bit resolution, ensuring precise measurement for process control applications.It features an open-style DIN rail mounting design that simplifies installation while maximizing space efficiency in control panels. Its modular architecture allows for flexible system configuration, making it ideal for applications requiring multiple analog signal acquisitions in constrained spaces. The module's robust construction meets industrial environmental requirements, providing reliable operation in demanding manufacturing conditions.

Engineered for seamless integration, the Allen-Bradley 1734-IE4C POINT I/O 4 Point Analog Input Module includes removable terminal blocks that facilitate easy wiring and maintenance without disrupting adjacent modules. Each channel provides individual signal conditioning and isolation, preventing ground loops and ensuring measurement accuracy. The Allen-Bradley 1734-IE4C Point I/O 4AI High Density Current Module is available in standard and conformal-coated (1734-IE4CK) versions, with the latter offering enhanced protection against moisture and contaminants for harsh environments. Status indicators on the module face provide immediate visual feedback for channel activity and fault conditions, enabling quick troubleshooting. These features make the Allen-Bradley 1734-IE4C particularly valuable for applications in chemical processing, water treatment, and discrete manufacturing.

The Analog Input Module Allen-Bradley 1734-IE4C demonstrates Rockwell Automation's commitment to flexible I/O solutions, supporting both standalone and distributed configurations within the POINT I/O platform. Its high channel density reduces overall system footprint while maintaining the signal integrity expected from Allen-Bradley products. The module's wide operating temperature range and vibration resistance ensure reliable performance in varied industrial settings. For hazardous locations.It carries certifications for Class 1 Division 2 areas, expanding its applicability to oil & gas and pharmaceutical industries. The module's compatibility with standard POINT I/O mounting bases simplifies system expansion and reconfiguration as application requirements evolve.

As part of the POINT I/O family, the 1734-IE4C model exemplifies the balance between performance and compactness that modern automation systems demand. Its four-channel design optimizes cost per point while providing the measurement accuracy needed for critical control applications. The module's support for both sinking and sourcing configurations enhances its versatility across different sensor types and control schemes. With easy integration into Studio 5000 and RSLogix programming environments, the AB 1734-IE4C POINT I/O 4 Channel High Density Current Input Module reduces engineering time during system commissioning and maintenance. This combination of features positions it as an optimal choice for engineers seeking reliable, high-density analog input solutions in space-constrained industrial applications.
