1492-AIFM16-F-3 Product datasheet

1492-AIFM16-F-3 Functional Description

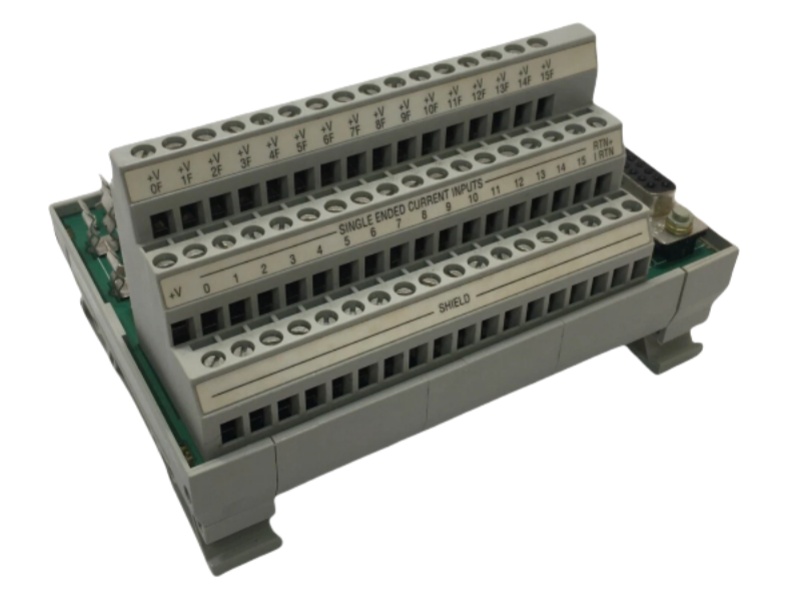

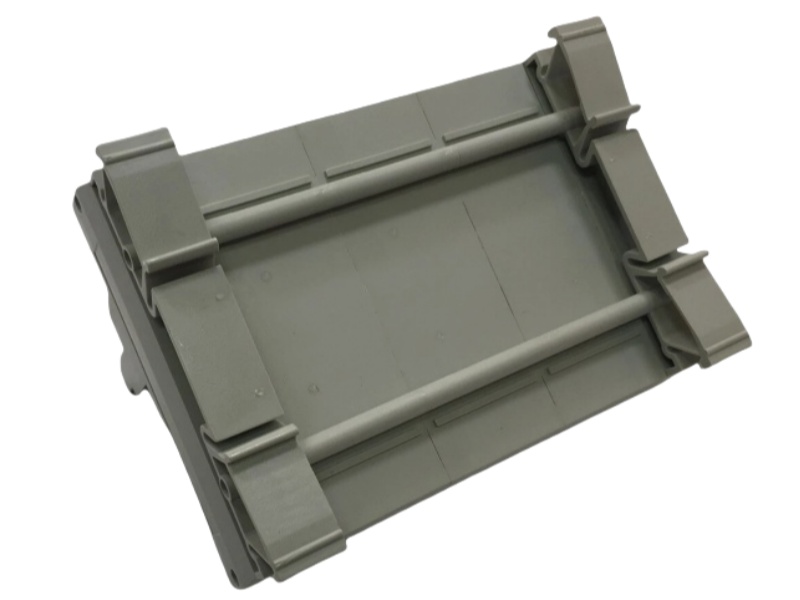

The Fixed Terminal Block AB 1492-AIFM16-F-3 is a high-performance 16-channel analog input module designed for industrial automation systems, featuring fusible protection and advanced diagnostic capabilities. This robust interface module operates with 10-30V DC input signals and includes 24V DC blown fuse indicators for each channel, providing immediate visual feedback for maintenance troubleshooting. The ALLEN BRADLEY 1492-AIFM16-F-3 Analog Input Fuse Module offers three terminals per input channel, enabling flexible wiring configurations for various analog signal types in process control applications. Its compact DIN-rail mount design (11×8.2×5.8cm) and lightweight construction (0.3kg) make it ideal for space-constrained control panels.

Engineered for reliability, the 1492-AIFM16-F-3 I/O Interface Module  incorporates durable fixed terminal blocks and supports D-Shell cable connections for secure signal transmission. Manufactured in the USA and shipped globally from Xiamen, China (tariff code 8537101190), this module maintains Allen-Bradley's stringent quality standards while offering enhanced protection against electrical faults. It is particularly valuable for applications requiring multiple analog input channels with individual circuit protection, such as in manufacturing automation and process industries.

The module's blown fuse indicators on the Analog Input Fuse Module Rockwell 1492-AIFM16-F-3 significantly reduce diagnostic time during system maintenance, while its fusible design protects sensitive control equipment from overcurrent conditions. This analog input module is compatible with various Allen-Bradley control systems, providing seamless integration into existing automation architectures. It demonstrates the brand's commitment to delivering robust, user-friendly solutions for industrial signal conditioning.

As a critical component in modern automation systems, the I/O Interface Module AB 1492-AIFM16-F-3 combines precise analog signal processing with enhanced safety features. Its combination of multiple protected input channels, diagnostic capabilities, and compact form factor makes it particularly valuable for energy management, batch processing, and machine monitoring applications where reliable signal acquisition is essential. The module's design emphasizes both functional performance and maintenance efficiency in industrial environments.
