ZMAC-541 Overview

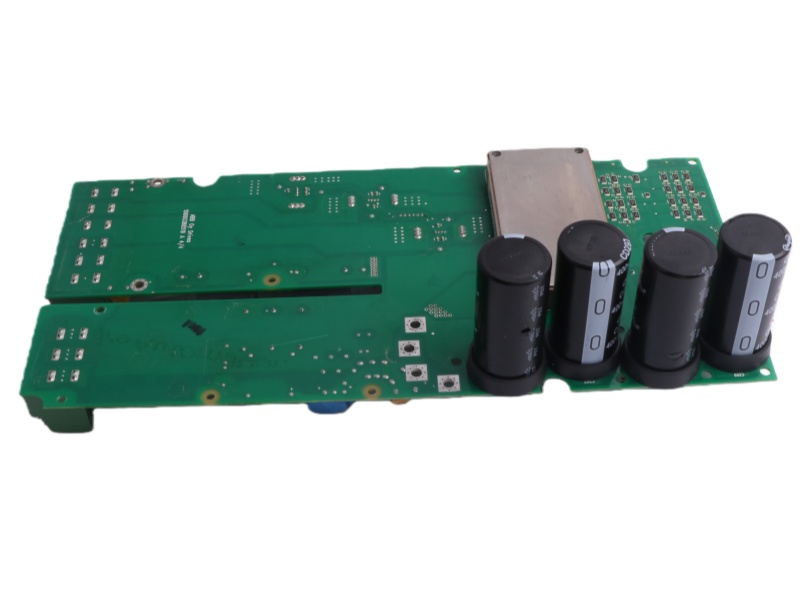

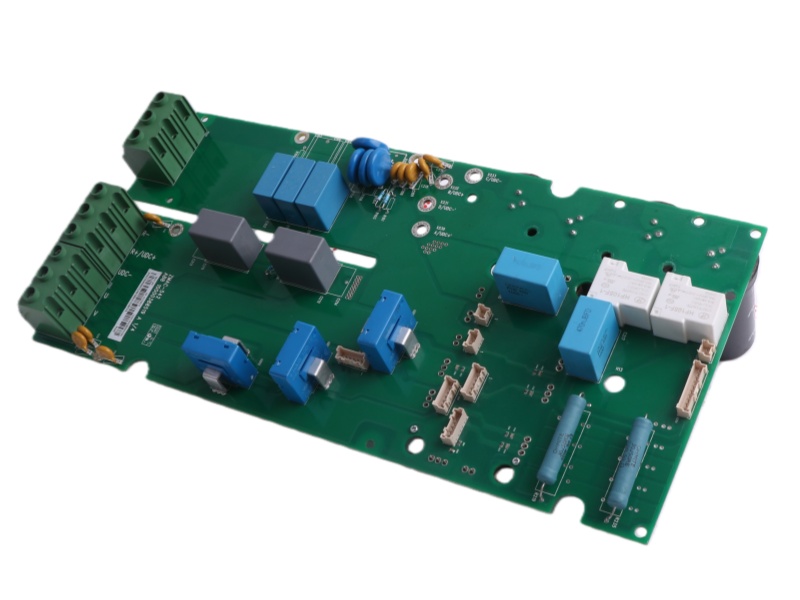

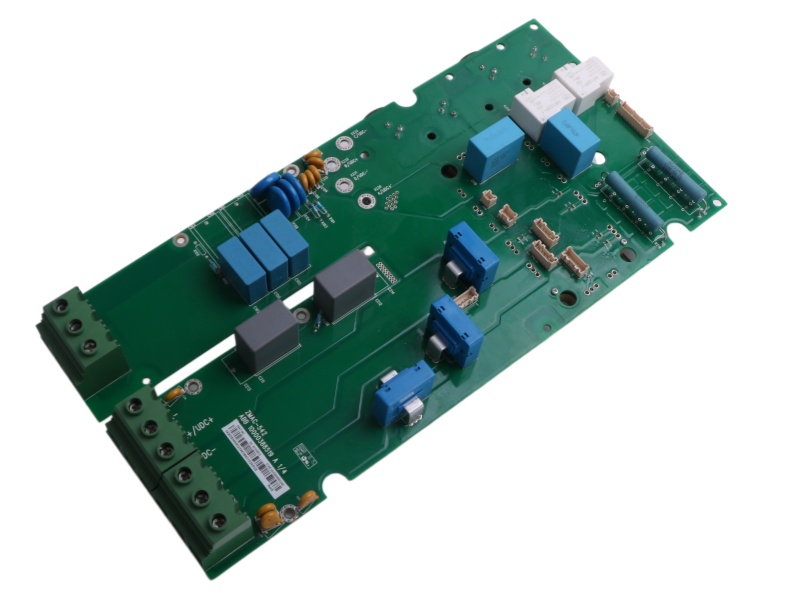

The ZMAC-541 Motherboard ABB is a robust industrial motherboard designed for high-power motor control applications up to 500 kW, featuring versatile communication interfaces and reliable operation in demanding environments.

Environment and Certification

Operating Temperature Range: -20°C to +60°C for reliable performance in varied conditions.

Protection Rating: IP20 enclosure rating protects against solid objects.

Input Frequency Range: Compatible with 40–60 Hz power systems.

Communication Certification: Supports standard industrial protocols including Ethernet and Modbus RTU.

Material Safety: Complies with 94V-0 flame resistance rating for circuit board materials.

Manufacturer Compliance: Produced by ABB in accordance with industrial control equipment standards.

FAQ

Q1: What is the main application of the ABB ZMAC-541 board?

A1: It is a high-power industrial motherboard designed for motor control systems up to 500 kW.

Q2: What is the input power specification for this board?

A2: It operates on a standard three-phase input of 380–480V AC, 40–60 Hz.

Q3: What communication protocols does the ZMAC-541 support?

A3: It supports Modbus RTU and Ethernet for system integration and control.

Q4: What is the board's environmental operating range?

A4: It can reliably operate in temperatures from -20°C to +60°C.

Q5: Does it meet any specific safety standards?

A5: Yes, the PCB complies with the 94V-0 flammability resistance rating.
