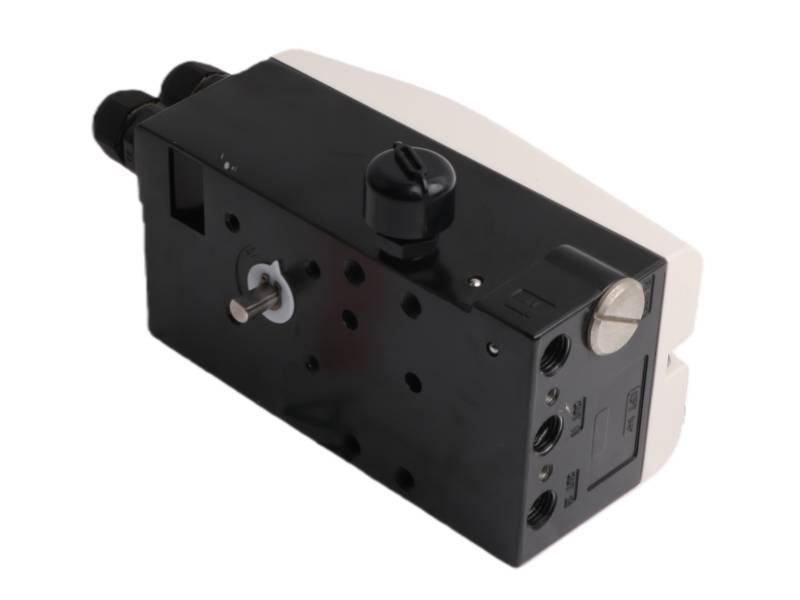

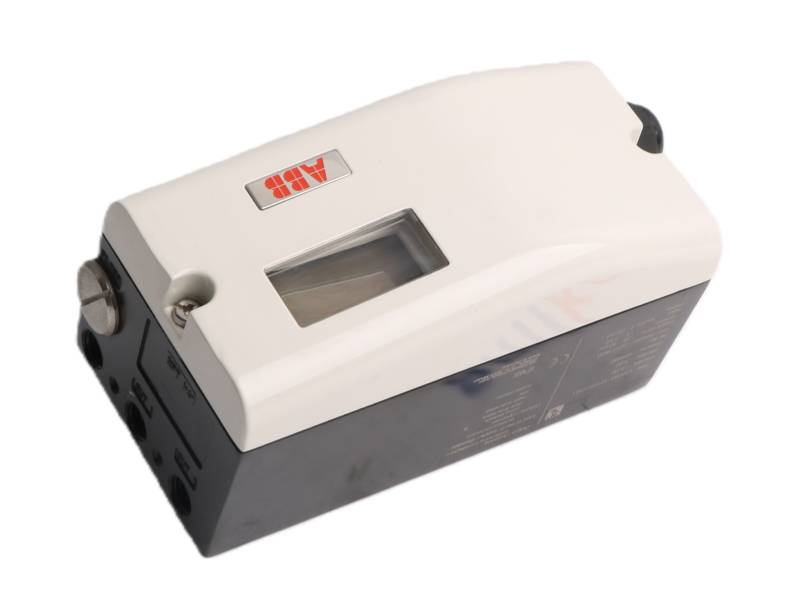

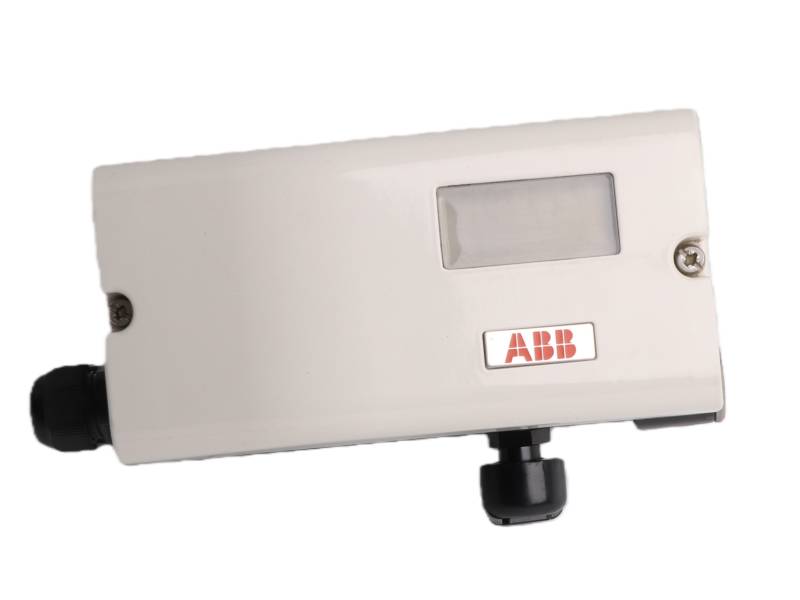

V18345-1010551001 Overview

The V18345-1010551001 Positioner ABB is a TZIDC electronic positioner with automatic setup for pneumatic actuators, offering "fail-safe" or "fail-freeze" control via I/P conversion.

High-Resolution Measurement Features

• Local Interface: Equipped with a built-in 2-line LCD and push-button panel for on-site configuration and monitoring.

• Communication Protocol: Standard local interface (LKS) and optional HART communication via the 4-20 mA signal line.

• Digital I/O: Includes a configurable digital input for safety functions and a digital output for collective alarm signaling.

• Modular Expandability: Supports retrofit modules for analog or digital position feedback.

• Position Indication Options: Allows the addition of a mechanical indicator, proximity switches, or 24V microswitches.

• Shutdown Capability: Can be equipped with a dedicated shutdown module for enhanced safety control.

FAQ

Q1: How can I configure the V18345-1010551001 on-site?

A1: It can be configured locally using its built-in 2-line LCD display and four push-buttons, or remotely via HART communication.

Q2: What communication capabilities does it have?

A2: It features a standard local (LKS) interface and supports optional HART protocol communication over the 4-20 mA signal line.

Q3: Can additional functions be added to this positioner?

A3: Yes, its modular design allows for retrofitting optional modules, such as analog/digital feedback or a shutdown module, at any time.
