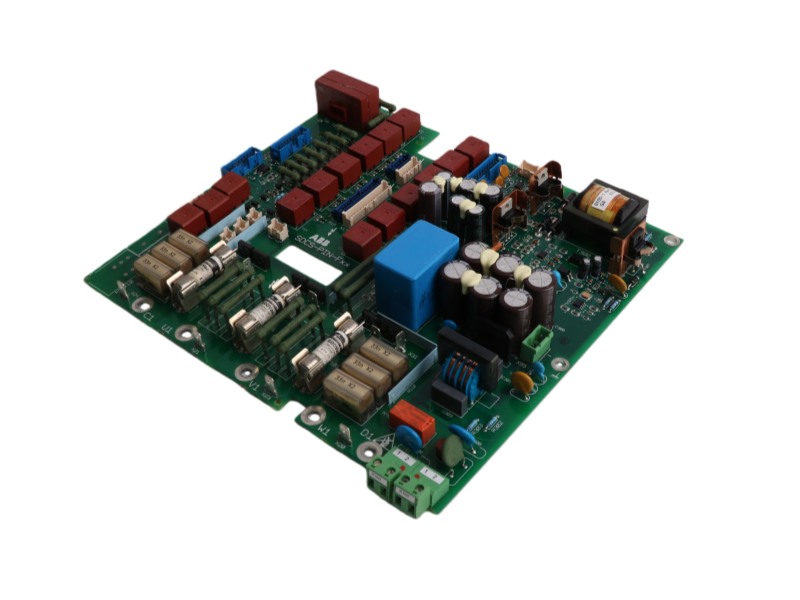

The Drive Board ABB SDCS-PIN-F01A 3ADT316300R1502 is an essential Power Interface Board designed for ABB's DCS550 drive systems. Functioning as a core system component, this board is responsible for managing critical power and control signals within the drive's architecture. Weighing a mere 0.35 kg, this lightweight yet robust component is engineered for reliable performance in industrial automation environments.

In the system configuration, the ABB SDCS-PIN-F01A 3ADT316300R1502 Drive Board works in conjunction with firing pulse boards like the SDCS-PIN-46 or SDCS-PIN-48, which are located under the module frame. The specific number of these boards depends on the drive configuration, with one needed for a 2-Q drive and two for a 4-Q drive. This setup controls thyristors or BCTs (Bidirectional Controlled Thyristors), which are fundamental for power conversion.

The operational integrity of the ABB POWER INTERFACE BOAR SDCS-PIN-F01A 3ADT316300R1502 is supported by a 24V DC power supply, with a typical consumption of 5-15 W. It operates on low logic voltages of 3.3V or 5V DC and features high electrical isolation rated between 1500-2500V AC. These specifications ensure stable and safe interfacing within the power stack, effectively isolating control circuits from power circuits.

Designed for demanding conditions, the SDCS-PIN-F01A 3ADT316300R1502 DCS550 Series DC Governor Power Board ABB can operate in temperatures from 0°C to +70°C and withstand storage temperatures from -40°C to +85°C. With humidity tolerance of 5-95% non-condensing, this board guarantees durability. Ultimately, the reliable performance of the ABB drive system SDCS-PIN-F01A 3ADT316300R1502 is crucial for the overall functionality and efficiency of the drive system it serves.
