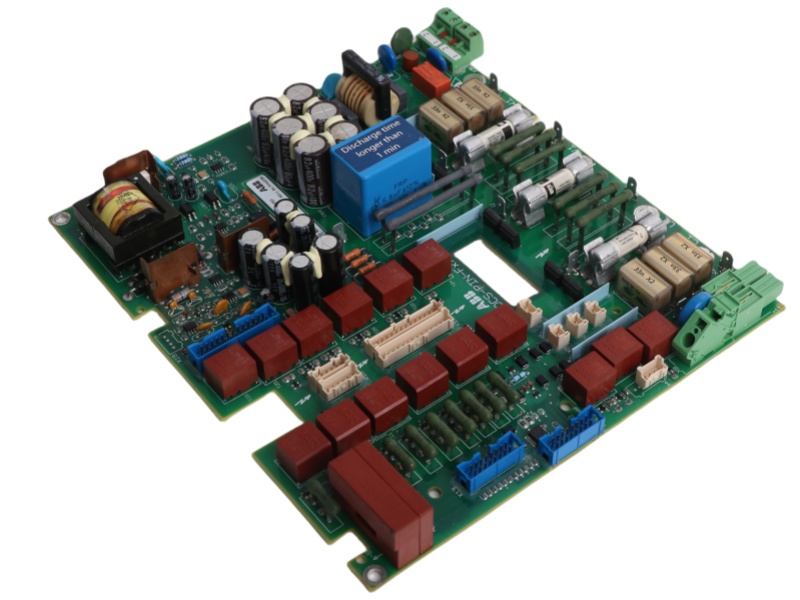

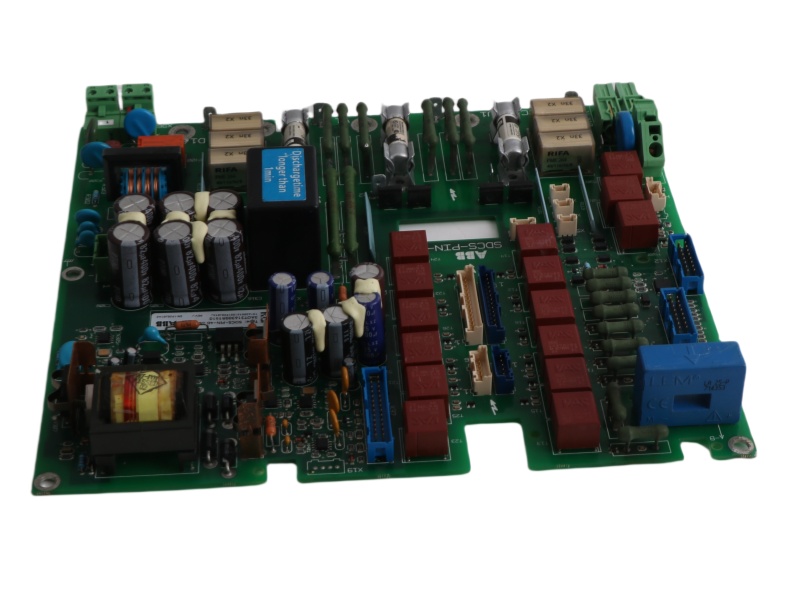

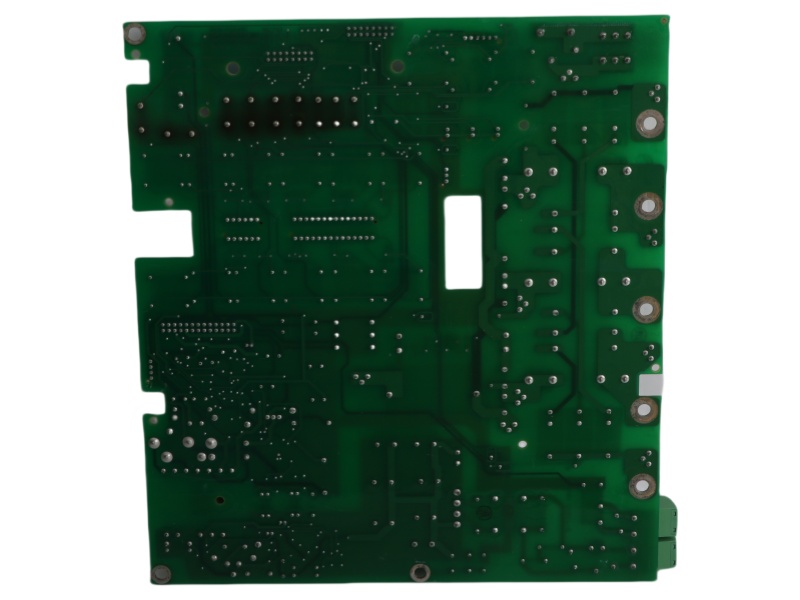

The ABB SDCS-PIN-4B 3ADT316300R1510 Power Supply Board is a precision-engineered power interface board designed for use in industrial automation and motor control systems. Equipped with a timing function, onboard transformer, and relay outputs, it serves as a reliable module for managing and distributing control signals within ABB drive systems. It is also a direct replacement for the legacy model INTERFACE BOARD ABB SDCS-PIN-4B 3ADT316300R1510, offering improved performance and compatibility.

As a motor control module, the 3ADT316300R1510 SDCS-PIN-4B Interface Board ABB delivers high accuracy, low noise, and exceptional stability. With a wide operating temperature range of -40°C to +85°C, it ensures dependable performance even in harsh industrial environments. The board features input voltage of 24V DC, output voltage of 0–10V DC, and output current up to 0–20mA, making it highly adaptable for various automation tasks.

Beyond motor control, the ABB 3ADT316300R1510 SDCS-PIN-4 module functions as a versatile power module. It can be mounted directly on a printed circuit board to supply power to critical components like ASICs, DSPs, microprocessors, memory units, FPGAs, and other analog or digital loads. It forms a key part of point-of-load (POL) or point-of-use power supply systems, which demand stable and efficient power delivery.

Compact and lightweight, the SDCS-PIN-4B POWER INTERFACE BOARD ABB measures just 100 x 50 x 20 mm and weighs only 100g. Its robust design, multifunctional capabilities, and seamless integration with ABB systems make it a reliable solution for modern industrial control applications, ensuring continuous and efficient operation.
