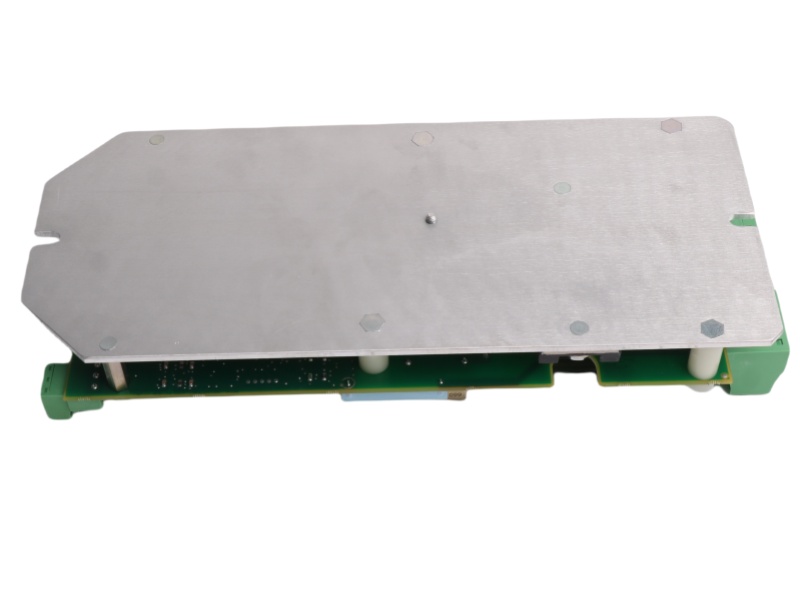

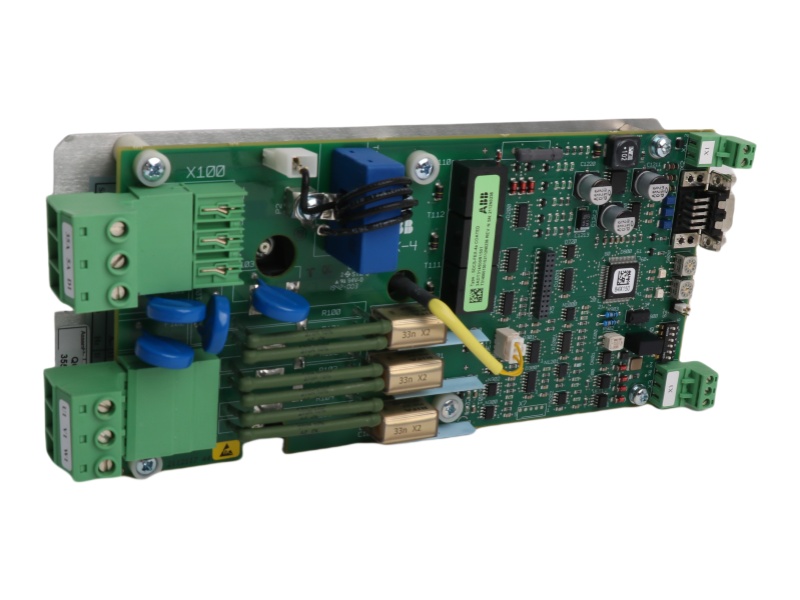

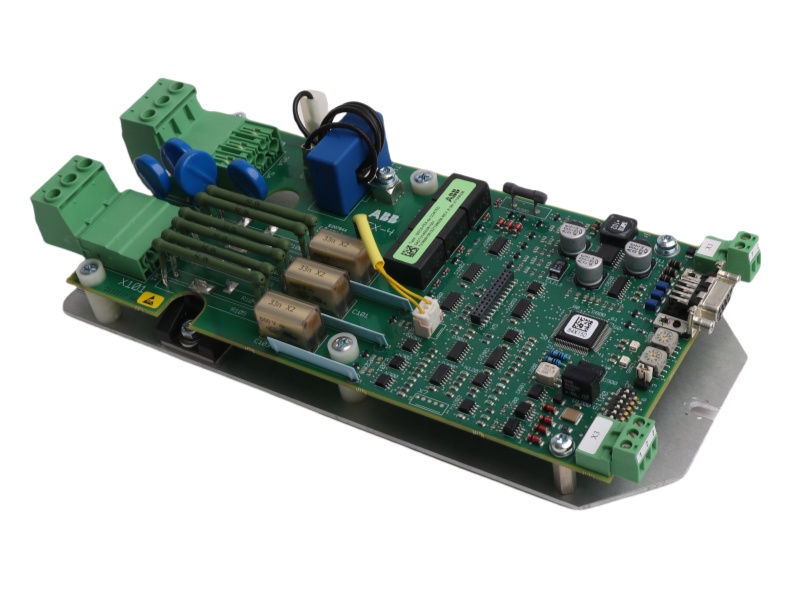

The ABB SDCS-FEX-4a 3ADT314500R1501 Excitation plate is a thyristor-controlled field exciter module designed for ABB DCS800 DC drive systems, delivering precise motor excitation control. This robust module operates with a 24V DC nominal input (20-30V range) and provides 0-250V DC output voltage, supporting continuous power outputs of 5-10kW. The ABB SDCS-FEX-4a 3ADT314500R1501 PDF ensures reliable performance in demanding industrial applications, from steel mills to mining operations.

The Advant OCS/800xA SDCS-FEX-4a 3ADT314500R1501 accepts both 0-10V DC and 4-20mA reference inputs, enabling seamless integration with various control systems. Its 4-quadrant operation capability allows smooth torque control in both motoring and generating modes, while the 20-50A current capacity meets rigorous operational demands. The module's design emphasizes stability, with optimized heat dissipation and electrical isolation for long service life.

The Excitation plate SDCS-FEX-4a 3ADT314500R1501 ABB complements ABB's drive ecosystem, working in harmony with DCS500B microprocessor boards and CDP 312 control panels. Its advanced thyristor technology ensures rapid response to load changes, maintaining consistent field current even during voltage fluctuations. The module's compact design simplifies installation while meeting industrial protection standards.

As a critical component in DC drive systems, the ABB SDCS-FEX-4a 3ADT314500R1501 Field Exciter Board delivers the precision and durability required for heavy-duty applications. Its combination of high current capacity, wide voltage range, and robust construction makes it ideal for industries requiring reliable motor control under challenging conditions.
