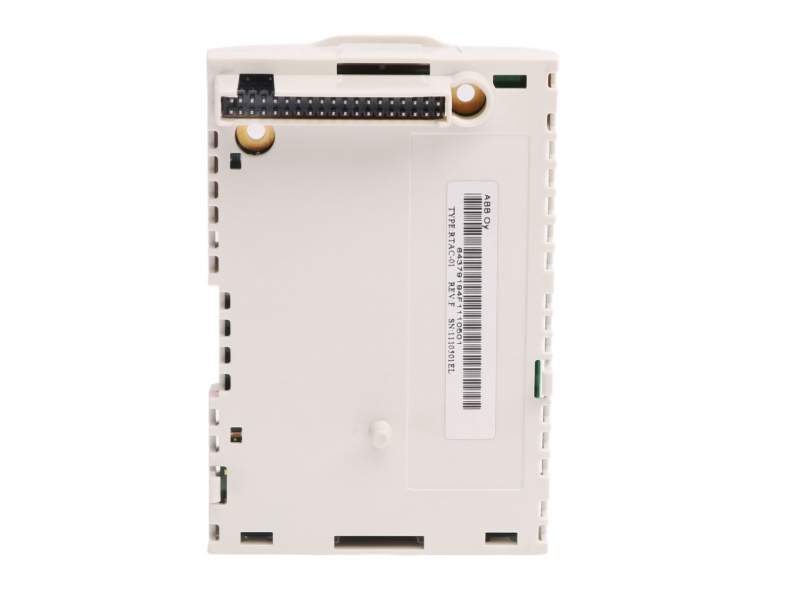

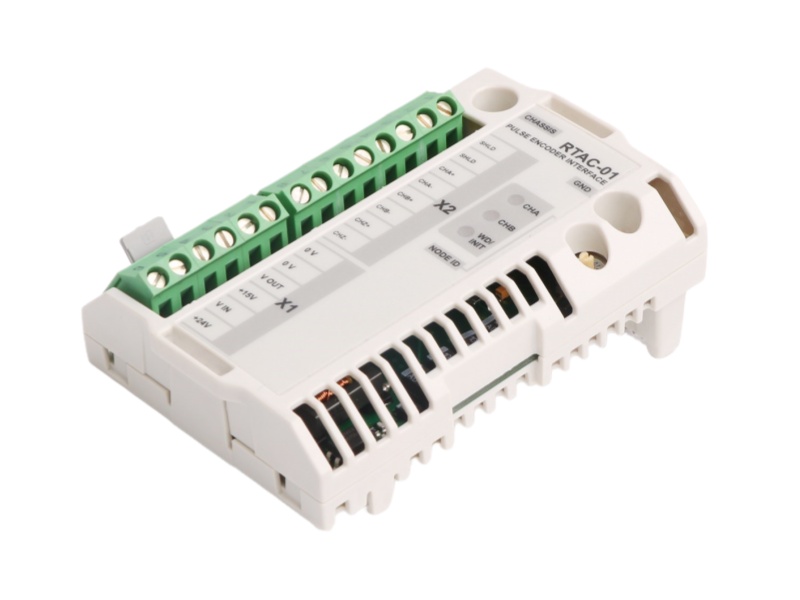

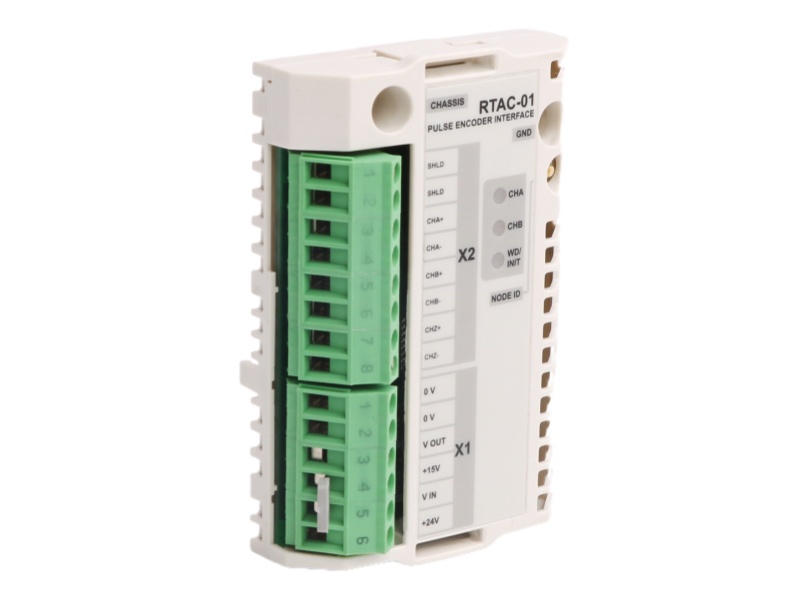

ABB RTAC-01 64610805 Pulse Encoder Interface Module

Inquiry now

RTAC-01 64610805 Product datasheet

Model number:	RTAC-01 64610805	Module Type：	Pulse Encoder Interface Module
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1.08 kg	HS CODE：	8537101190
Dimension:	18.5x8.5x30.5cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

RTAC-01 64610805 Functional Description

The ABB RTAC-01 Pulse Encoder Interface Module 64610805 is a specialized pulse encoder interface module designed for seamless integration with ACS800 and DCS800 series drives, providing critical signal conversion between encoders and drive controllers. This compact interface supports both 15/24 VDC differential and single-ended encoder signals, ensuring compatibility with various industrial encoder types. The ABB 64610805 Feedback Module Pulse Encoder replaces the earlier model 64379194, offering enhanced performance and reliability while maintaining full backward compatibility with existing systems. Its small form factor (9.5x6.2x4cm) and minimal weight (0.08kg) make it ideal for space-constrained industrial installations.

Engineered for robust performance, the Pulse Encoder Interface ABB RTAC-01 64610805 operates effectively in demanding industrial environments where precise motion control and position feedback are essential. The module requires proper installation following ABB's safety guidelines, including studying all relevant drive manuals before implementation. It is designed for professionals with electrical fundamentals knowledge and wiring experience, ensuring safe and effective integration into drive systems.

The technical architecture of the RTAC-01 Interface Card 64610805 ABB incorporates noise immunity features that maintain signal integrity in electrically noisy environments. This interface module facilitates accurate data transmission between encoders and drive controllers, supporting precise speed and position control in automation applications. It demonstrates ABB's commitment to providing reliable interface solutions that enhance drive system functionality and performance.

Implementation of the PULSE ENCODER INT 64610805 ABB requires the drive to be fully installed and operational before module integration, following all safety protocols outlined in both the drive and module documentation. This module is particularly valuable in applications requiring precise motion control, such as industrial automation, material handling, and processing systems. It represents ABB's dedication to engineering excellence, providing a reliable interface solution that meets the demanding requirements of modern industrial drive systems.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	3N2632	ABB	3HAC17484-8	ABB	3EHL409319R0001 URB512 D15
ABB	3HNP04014-1	ABB	3HAC17282-1	ABB	3EHL409300R0001 PPB626 B01
ABB	3HNP03386-1	ABB	3HAC16035-1	ABB	3EHL409055R0001 PPB622 B01
ABB	3HNP01759-1	ABB	3HAC14551-2	ABB	3EHL409054R0001 KUB921 A01
ABB	3HNM09846-1	ABB	3HAC14549-3	ABB	3EHE300694R0001 PPA425 B01
ABB	3HNM03189-1	ABB	3HAC063061-001	ABB	3EHE300692R0001 LAA424 C01
ABB	3HNM00148-01	ABB	3HAC039728-001	ABB	3BSE050201R1 PM866-2
ABB	3HNA015717-001	ABB	3HAC031683-004	ABB	3BDH000311R0101 PL810
ABB	3HEA800906-001	ABB	3HAC024322-001	ABB	3AXD50000032633 E152A03EIOA
ABB	3HNA007719-001 3HNA006145-001	ABB	3HAC044168-001 RMU102	ABB	1SBP260102R1001 XC08L1

Encoder Interface Technical Specifications

The encoder interface supports CH A, CH B, and CH Z channels, compatible with both differential and single-ended configurations. It provides two short-circuit-proof output voltages: +24 V DC ±10% (5 W max) and +15 V DC ±10% (5 W max). Signal levels are defined as >7.6 V for "1" and <5 V for "0" under 15 V supply, and >12.2 V for "1" and <8 V for "0" under 24 V supply. The interface operates at a maximum frequency of 200 kHz, delivering high-speed feedback with a resolution of 0.00305% (15 bits) and an accuracy of 50 ppm. Maximum encoder cable lengths are 300 m for differential push-pull, 200 m for single-ended push-pull, and 100 m for open collector/emitter configurations. The module is fully isolated from logic and earth, tested at 1.5 kV AC for 1 minute to ensure safety and reliability in industrial environments.
