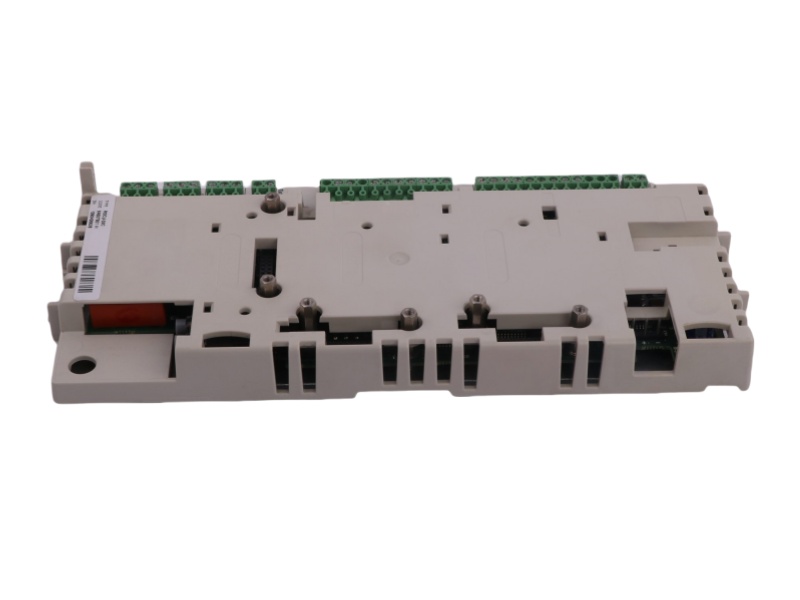

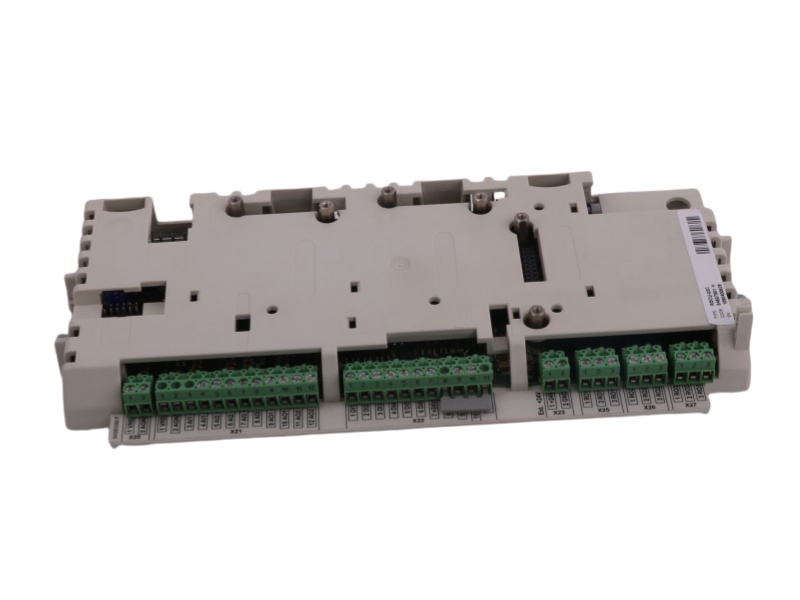

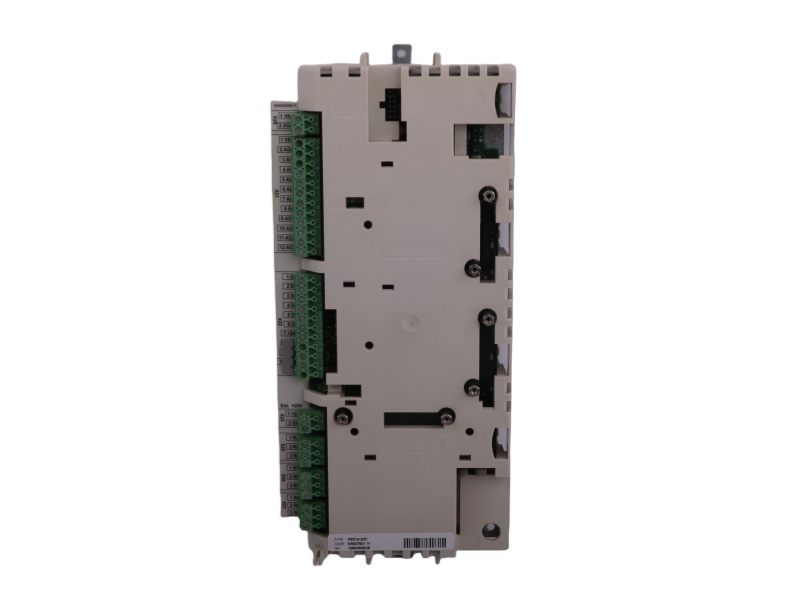

ABB RDCU-02C RDCU Drive Control Unit

Inquiry now

RDCU-02C Product datasheet

Model number:	RDCU-02C	Module Type：	RDCU Drive Control Unit
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	0.55 kg	HS CODE：	8537101190
Dimension:	12.7x3.1x28.2cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

RDCU-02C Functional Description

The ABB RDCU-02C RDCU Drive Control Unit control unit offers versatile mounting capabilities, designed for standard 35×7.5mm DIN rails in either vertical or horizontal orientations. Proper installation of the ABB RDCU-02C DRIVE CONTROL UNIT requires adequate ventilation space around its housing vents, with particular attention to avoid placement above heat-producing equipment that could affect thermal performance. The unit's compact yet robust design ensures reliable operation in diverse industrial environments.

Power supply flexibility is a key advantage of the ABB Drive Control Unit RDCU-02C, accepting 24V DC from either the drive's internal power supply board (with 1A current limit) or an external source. Technicians should note that the ABB RDCU-02C's total current draw varies based on connected optional modules, with detailed specifications available in respective component manuals. This dual-power capability enhances installation adaptability across different system configurations.

The RDCU Drive Control Unit ABB RDCU-02C establishes critical communication via fiber optic links, connecting to inverter/IGBT modules through PPCS ports V57 and V68. This optical interface ensures noise-resistant data transmission between the ABB RDCU-02C and ACS800 series drives, maintaining signal integrity in electrically noisy industrial environments.

With CE/UL certifications and wide temperature tolerance, the RDCU-02C ABB PDF delivers reliable performance for motor control applications including pumps, fans, and conveyor systems. Its combination of installation flexibility and robust connectivity makes it ideal for modern industrial automation upgrades.
