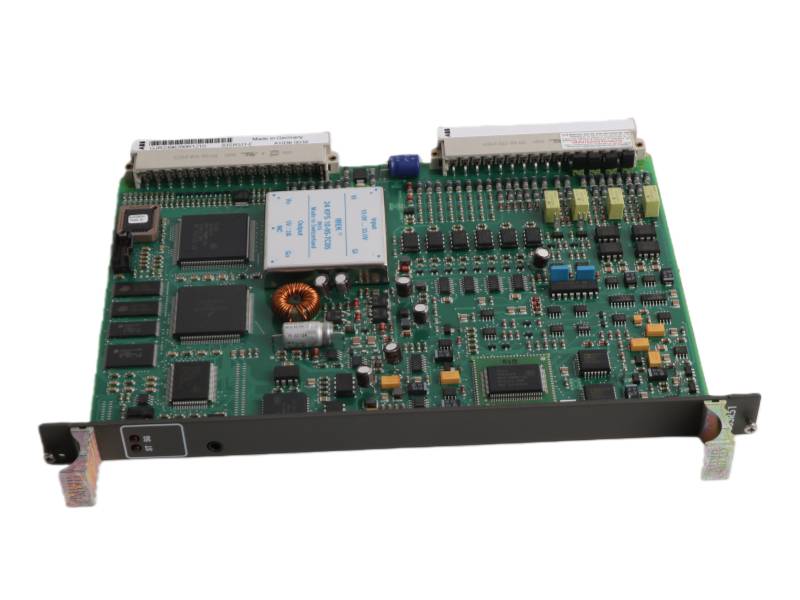

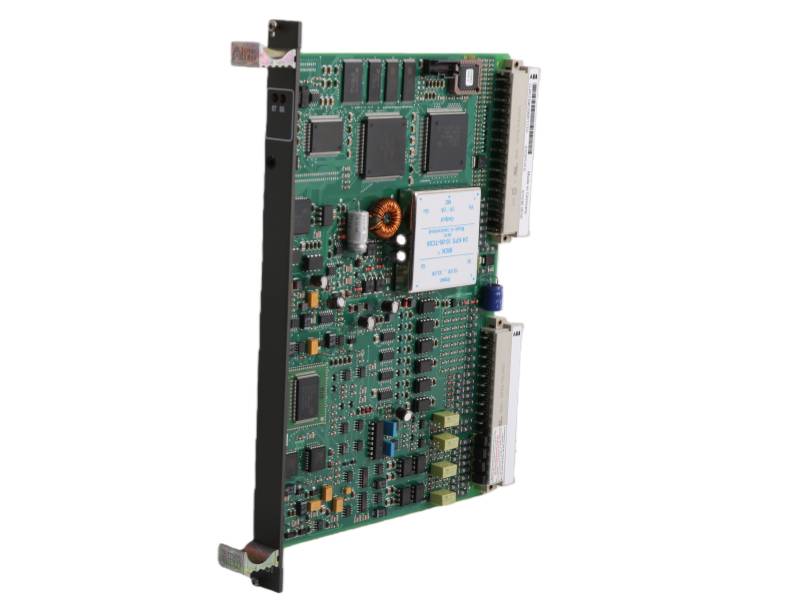

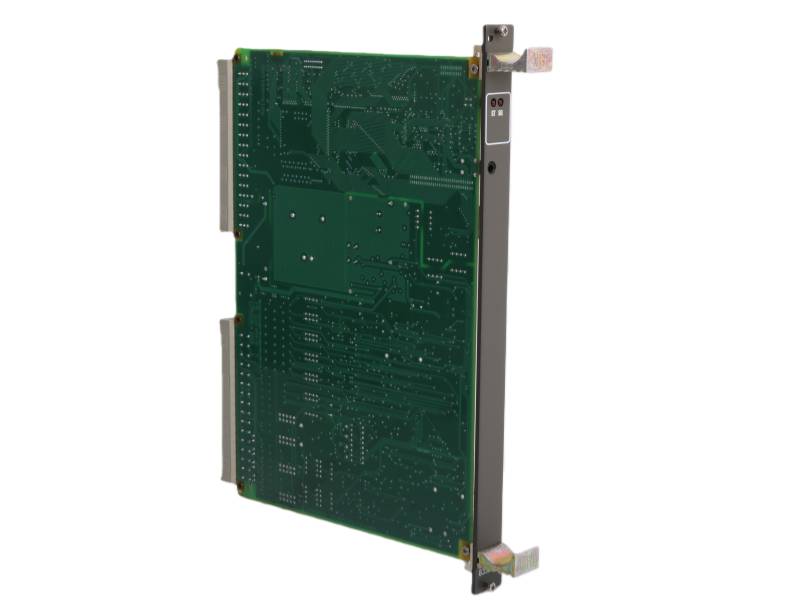

GJR2396200R1210 83SR51R1210 Overview

The Control Module GJR2396200R1210 83SR51R1210 ABB is a versatile control module. It offers two channels for controlling electrohydraulic, electropneumatic, and electric actuators, each channel integrating digital (4DI/1DO) and analog (2AI/1AO) I/O.

Features and Benefits

• Versatile Dual-Channel Design: Features two independent channels for simultaneous control of different actuator types or processes.

• Comprehensive I/O Mix: Each channel combines 4 DIs, 1 DO, 2 AIs, and 1 AO, supporting both discrete (on/off) and continuous variable control.

• Broad Actuator Compatibility: Specifically designed for controlling electrohydraulic, electropneumatic, and electric motor-driven actuators.

• Space-Saving Integration: Consolidates multiple signal types into a single module, reducing system footprint and complexity.

• Simplified System Configuration: Reduces external wiring and component count through built-in, multi-function control channels.

• Standardized Control Solution: Complies with industrial electrical control standards for safe and reliable operation up to 1000V.

FAQ

Q1: What is the ABB GJR2396200R1210?

A1: It is a versatile dual-channel control module for industrial actuator systems.

Q2: What types of control does it support?

A2: It supports both binary (on/off) and analog (variable) control within each channel.

Q3: What is the I/O configuration per channel?

A3: Each channel integrates 4 Digital Inputs (DI), 1 Digital Output (DO), 2 Analog Inputs (AI), and 1 Analog Output (AO).

Q4: Which actuators is it compatible with?

A4: It is designed for electrohydraulic, electropneumatic, and electric motor-driven actuators.

Q5: What is a key benefit of its dual-channel design?

A5: It allows for controlling two independent processes or actuators with a single, compact module, saving space.
