ABB FS300R12KE3/AGDR-71CS IGBT Module

Inquiry now

FS300R12KE3/AGDR-62C Product datasheet

Model number:	FS300R12KE3/AGDR-62C	Module Type：	IGBT Module
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1 kg	HS CODE：	8537101190
Dimension:	18.5x15x3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

FS300R12KE3/AGDR-62C Functional Description

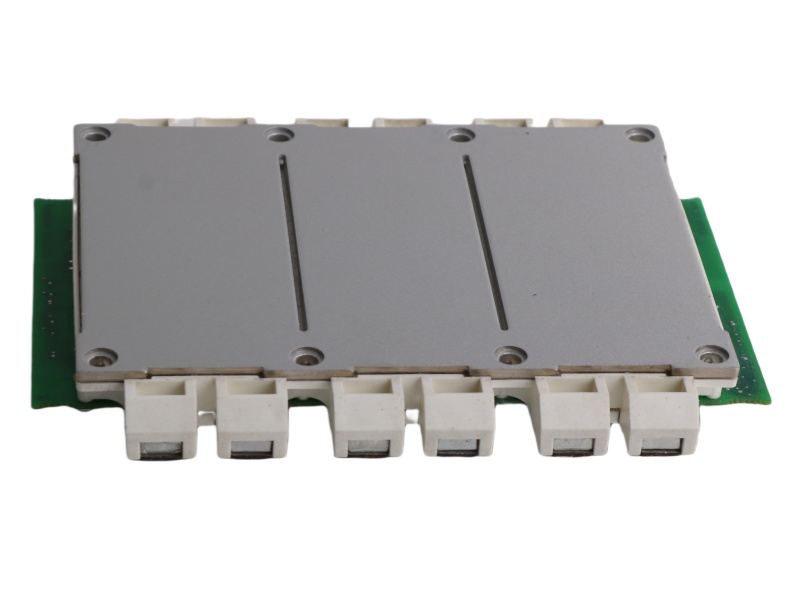

The Drive Board+IGBT Module FS300R12KE3/AGDR-62C is a robust IGBT power module designed for industrial drives and power conversion systems. This high-performance module features a 1200V voltage rating and 300A nominal collector current, making it ideal for demanding motor control applications. The FS300R12KE3/AGDR-62C IGBT KIT ABB incorporates advanced thermal management with low thermal resistance (IGBT: 0.08 K/W, Diode: 0.10 K/W) for efficient heat dissipation.

Manufactured by ABB in Sweden, this module measures 18.5×14.8×3cm and weighs 1kg, offering excellent power density. The Inverter Drive ABB FS300R12KE3/AGDR-62C operates within a wide temperature range (-40°C to +125°C storage, 150°C max junction) and features a 6V gate-emitter threshold voltage with 1-10Ω recommended gate resistance for optimal switching performance. Its global tariff code (8537101190) ensures compliance with international standards.

The FS300R12KE3/AGDR-62C Spare Parts ABB utilizes innovative TIM (Thermal Interface Material) foil technology, providing superior thermal conductivity and durability compared to traditional thermal grease. This design enhancement is particularly beneficial for cyclic applications, offering more consistent heat transfer over extended periods.

As part of ABB's power electronics portfolio, the AC Drives ABB FS300R12KE3/AGDR-62C delivers reliable performance in industrial inverters, UPS systems, and renewable energy applications. Its combination of high current capacity, efficient thermal management, and robust construction makes it a preferred choice for engineers designing high-power conversion systems.
