DSAO130A 3BSE018294R1 Overview

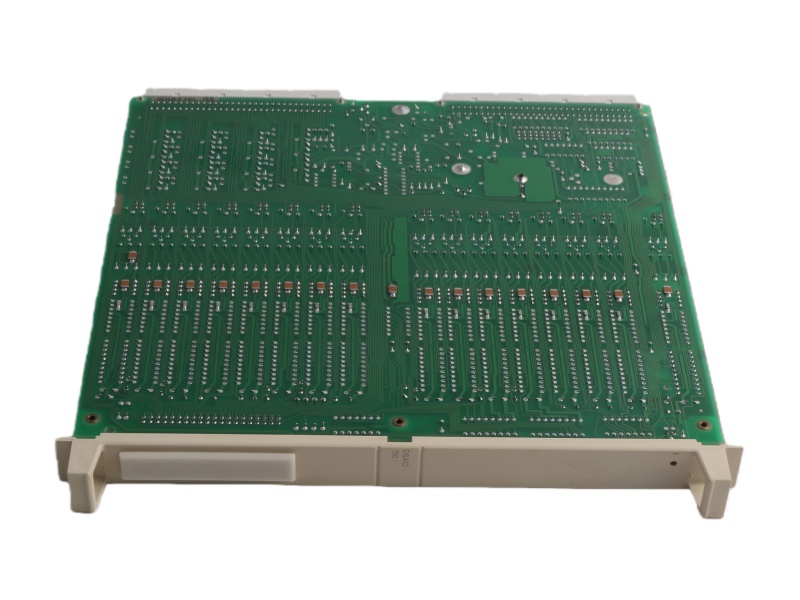

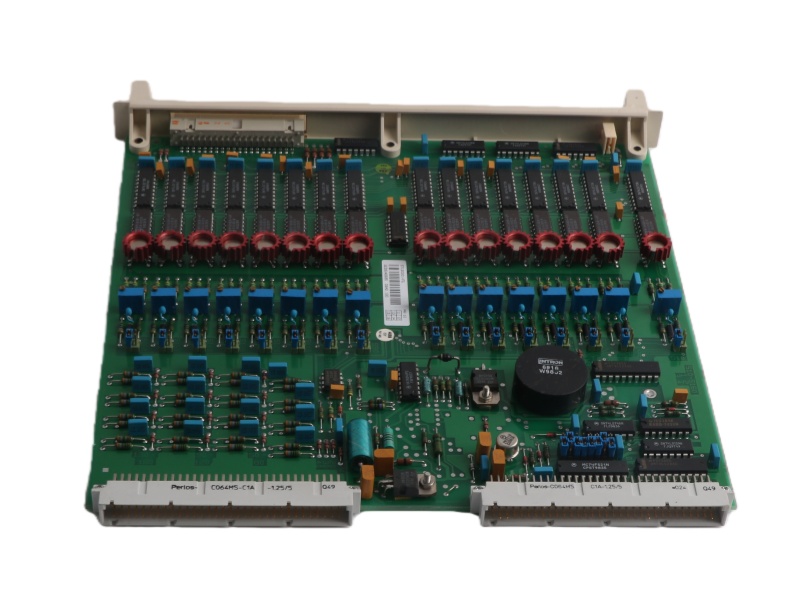

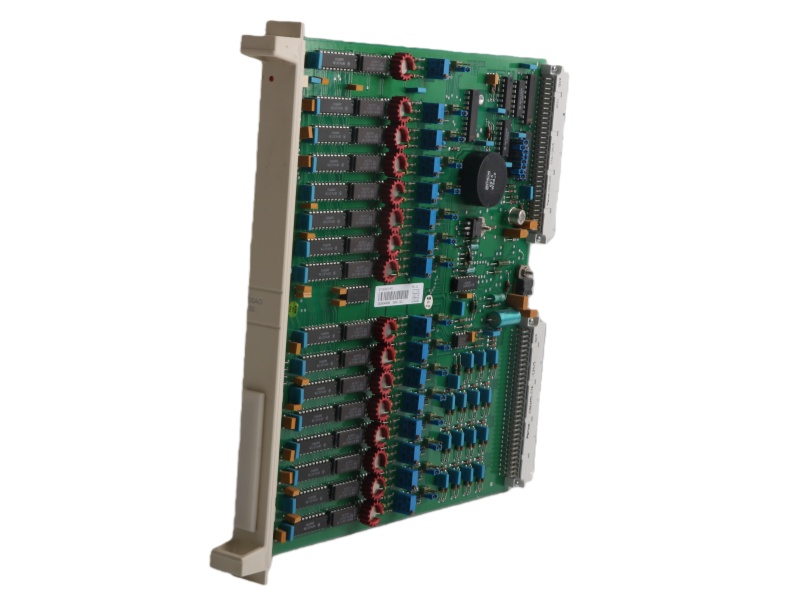

The DSAO130A 3BSE018294R1 ABB Analog Output Board is a 16-channel analog output board designed for the Advant Master Process Control System, providing robust and reliable signal output for industrial automation applications.

Features and benefits

High-Density Output: Provides 16 channels for efficient analog signal output in control systems.

System Compatibility: Designed for the ABB Advant Master Process Control System, ensuring reliable integration.

Compact Design: With dimensions of 363mm x 257mm x 15mm, it is a space-efficient I/O module.

Industrial Robustness: Built for demanding process environments with an exemption from certain RoHS provisions.

Clear Identification: Product ID 3BSE018294R1 allows for precise ordering and system documentation.

Exchangeable Part: Available as an upgrade/replacement (StepUp) from the DSAO130 version.

FAQ

Q1: What is the primary function of the ABB DSAO130A board?

A1: It is a 16-channel analog output board designed to convert control signals from the Advant Master system into analog outputs for field devices.

Q2: Is the DSAO130A compliant with the RoHS directive?

A2: No, it is officially exempt from the RoHS (2011/65/EU) scope under specific articles (c, e, f, j) due to its industrial application and reliability requirements.

Q3: Can this board be used as a direct replacement or upgrade?

A3: Yes, it functions as a "StepUp" from the DSAO130 version, allowing for direct exchange and upgrade within compatible ABB systems.

Q4: What are the key physical dimensions of the module?

A4: It measures 363mm in width, 257mm in depth, and 15mm in height, with a net weight of 0.318 kg.

Q5: For which main control system is this I/O module intended?

A5: It is specifically designed for integration with the ABB Advant Master Process Control System.
