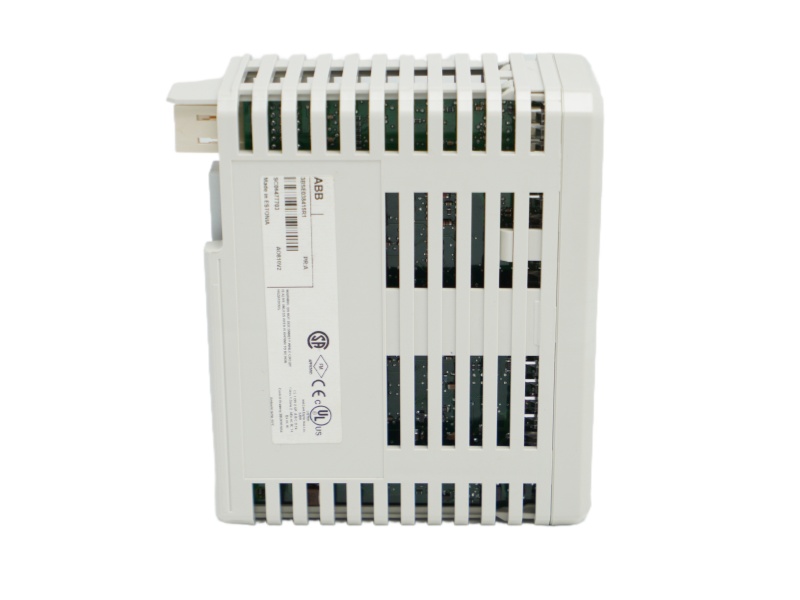

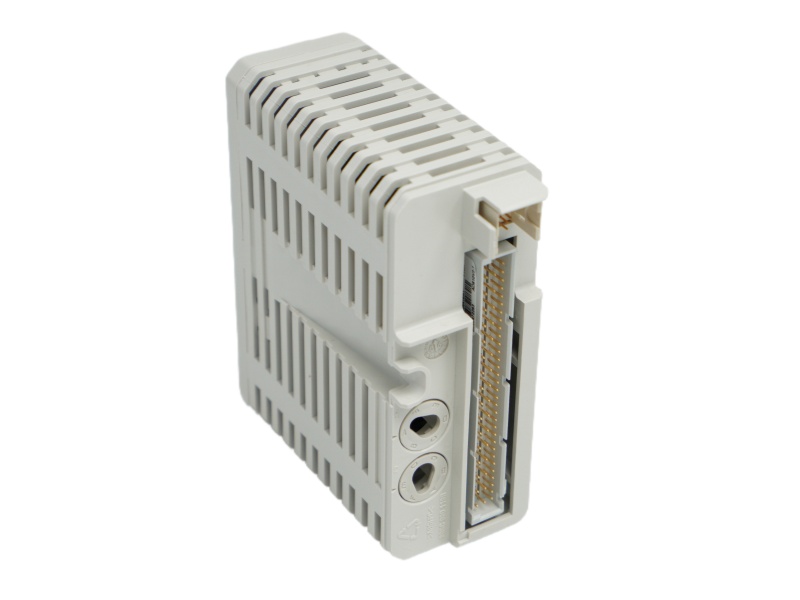

The AO810V2 ABB ANALOG OUTPUT MODULE is a high-density analog output module designed for the Symphony Plus control system, providing critical control signals in industrial process automation. This compact module delivers eight independent output channels, each capable of generating a precise 0(4)-20 mA current signal with 14-bit resolution, ensuring accurate command and control of field actuators, valves, and other final control elements. The high resolution of the ABB AO810V2 (3BSE038415R1) is essential for fine-tuning process variables in demanding applications such as chemical processing, power generation, and water treatment plants where precise analog control is paramount.

A key technical feature of this module is its robust drive capability, supporting a load impedance of up to 500 Ohms on all channels simultaneously or 850 Ohms on a single channel. This flexibility allows the Analog Output Module ABB AO810V2 3BSE038415R1 to interface with a wide range of field devices without requiring additional signal conditioning equipment. The module requires connection through specific termination units including TU810, TU812, TU814, TU830 or TU833, which provide the necessary wiring interfaces and signal conditioning to ensure reliable operation in electrically noisy industrial environments while maintaining signal integrity across all eight channels.

With compact dimensions of 45mm (W) x 119mm (H) x 102mm (D) and a net weight of just 0.2 kg, the ABB AO810V2 3BSE038415R1 offers significant space savings in control cabinet layouts. Despite its small footprint, the module delivers substantial functionality, making it an efficient solution for modern distributed control systems where panel space optimization is crucial. The design complies with RoHS environmental directives and falls under WEEE category 5, reflecting ABB's commitment to environmental responsibility in its industrial automation components.

The AO810V2 3BSE038415R1 ABB Analog Output Module serves as a reliable interface between the digital control system and analog field devices, converting digital commands from controllers into precise analog signals that directly manipulate process variables. This module exemplifies ABB's engineering excellence in creating specialized I/O modules that balance performance, density, and reliability. As part of the comprehensive Symphony Plus system portfolio, the proven performance of the Analog Output 8 ch 3BSE038415R1 makes it a trusted component for critical process control applications worldwide, ensuring long-term operational stability and precision in demanding industrial environments.
