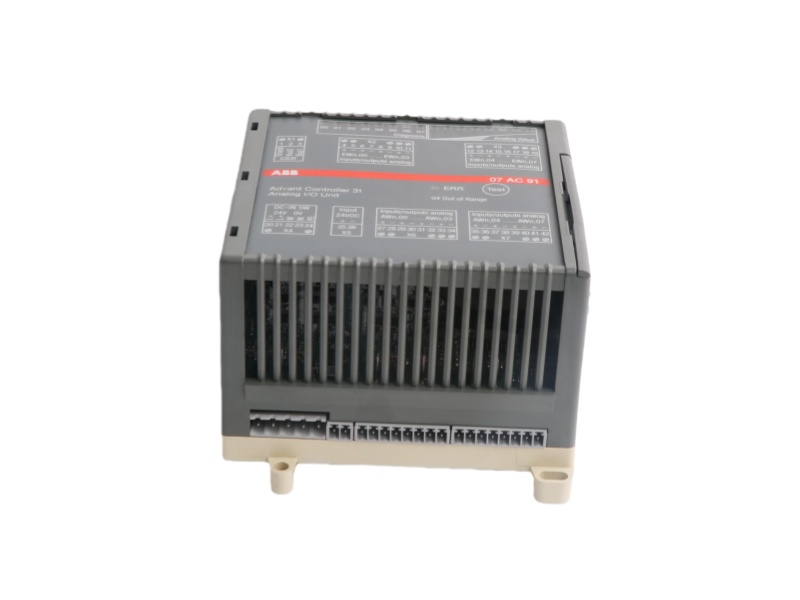

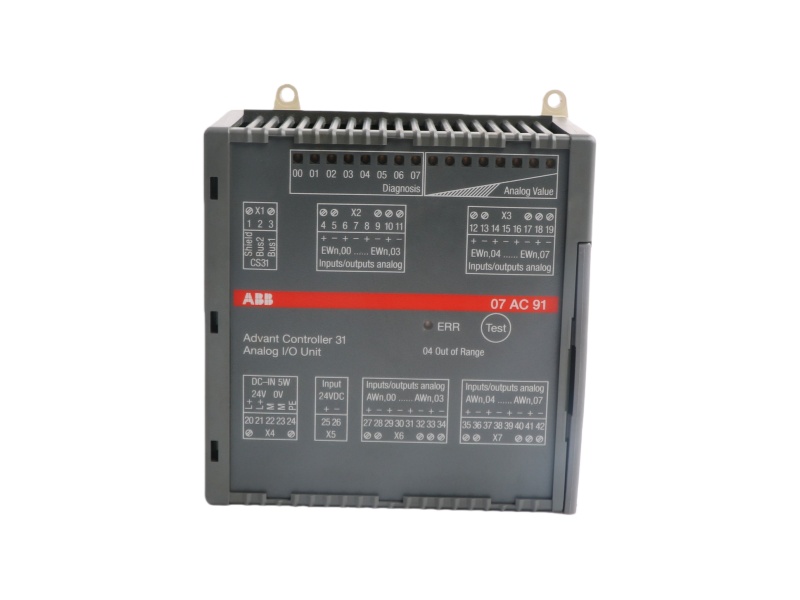

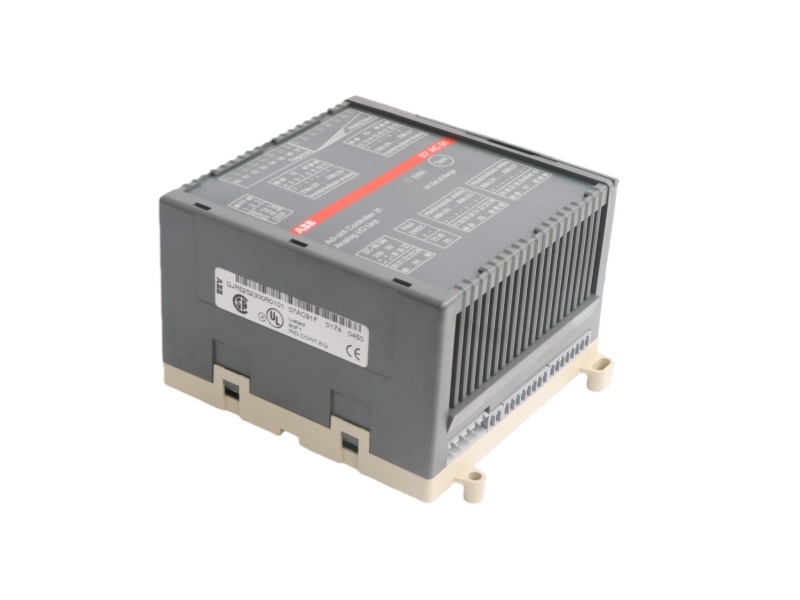

The ABB Nitrol Power Control 07AC91 GJR5252300R0101 is a versatile analog input/output module designed for the Advant Controller 31 (AC31) system, serving as a remote I/O unit on the CS31 system bus. This sophisticated module provides 16 configurable analog channels that support both voltage and current signals, offering flexible integration for various process measurement and control applications. The primary function of the module is to bridge the gap between analog field devices and the digital control system, enabling precise data acquisition and output control.

Engineered with dual operating modes, the Analog I/O module ABB 07AC91 GJR5252300R0101 can be configured for either 12-bit resolution with eight input and eight output channels, or 8-bit resolution with sixteen channels configurable in pairs. This flexibility allows the module to adapt to different application requirements, from high-precision measurement to general-purpose control tasks. The configuration of the Advant Controller AC31 07AC91 GJR5252300R0101 is easily set using DIL switches, simplifying installation and setup procedures while ensuring reliable operation.

The electrical design of the ABB 07AC91 GJR5252300R0101 Analog I/O Unit incorporates 24 V DC operating voltage and features electrical isolation between the CS31 system bus and the analog circuits. This isolation protects the control system from electrical disturbances and ensures signal integrity in noisy industrial environments. The comprehensive diagnostic capabilities of the module provide continuous monitoring of module status, facilitating quick troubleshooting and maintenance.

In practical application, the 07AC91 GJR5252300R0101 ABB Analog I/O module serves as a crucial interface for connecting analog sensors and actuators in process automation systems. Its DIN rail mounting and pluggable terminal design enable efficient installation and maintenance. The proven reliability and technical sophistication of the module  make it an essential component for ensuring accurate analog signal processing in industrial control applications, despite the AC31 platform's obsolescence in favor of the newer AC500 series.
